1.36W Mono Fully Differential Audio Power Amplifier, EUA6204 Replace APA0713.
EUA6204
EUA6204.pdf
EUA6204.pdfFEATURES
? Supply Voltage 2.5V to 5.5V
? 1.36W into 8? from a 5-V Supply at THD=1% (typ)
? Low Supply Current: 4mA typ at 5V
? Shutdown Current: 0.01μA typ
? Fast Startup with Minimal Pop
? Only Three External Components
- Improved PSRR (-80dB) for Direct Battery Operation
- Full Differential Design Reduces RF Rectification
- -63dB CMRR Eliminates Two Input Coupling
Capacitors
? RoHS Compliant and 100% Lead (Pb)-Free

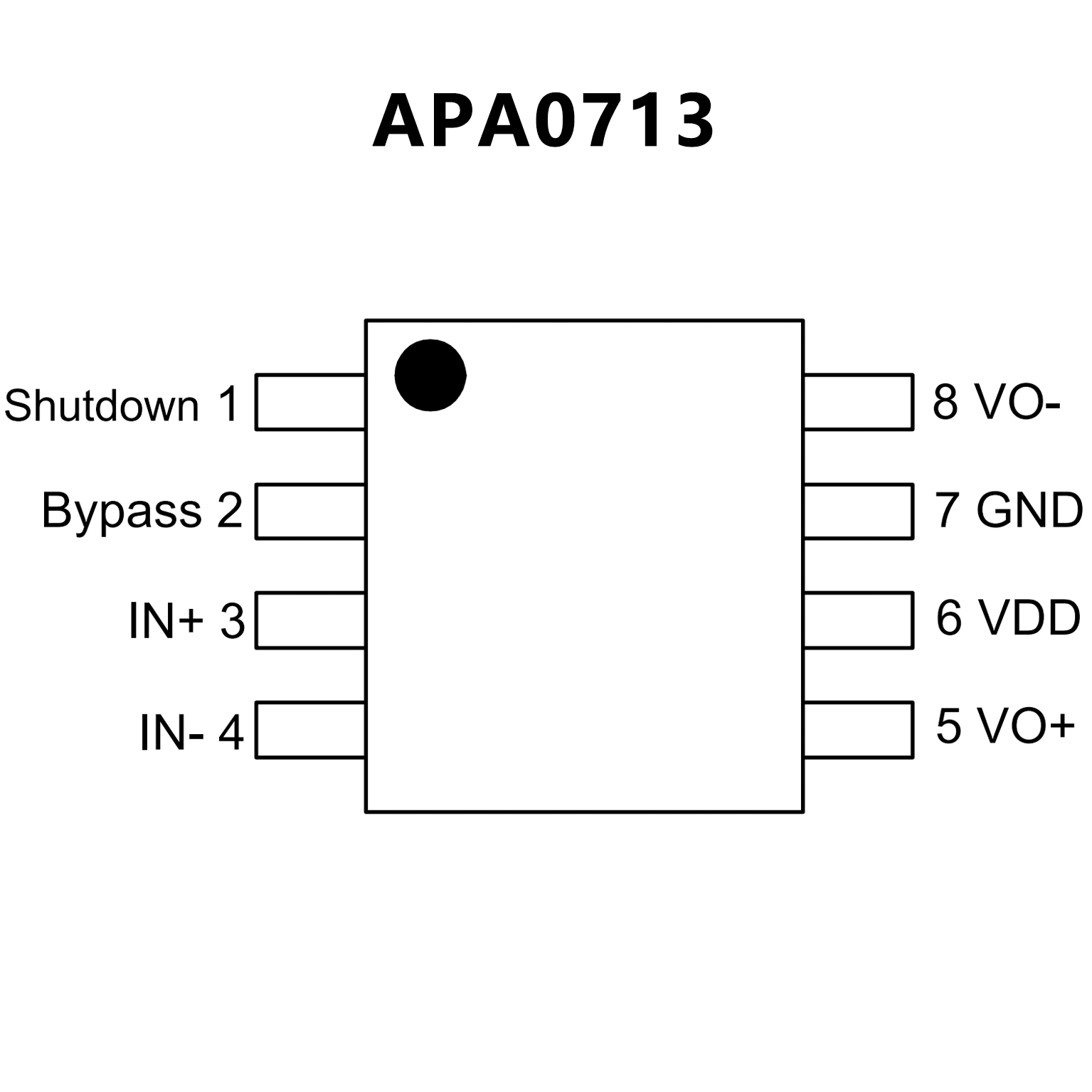

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Operating Voltage : 2.6V-5.5V
? APA0713 Compatible with TPA751
? Supply Current
– IDD=1.3mA at VDD=5V ,BTL mode
– IDD=0.9mA at VDD=3.3V ,BTL mode
? Low Shutdown Current
– IDD=0.1mA
? Low Distortion
– 630mW, at VDD=5V, BTL, RL=8W
THD+N=0.15%
– 280mW, at VDD=3.3V, BTL, RL=8W
THD+N=0.15%
? Output Power at 1% THD+N
– 900mW, at VDD=5V, BTL, RL=8W
– 400mW, at VDD=3.3V, BTL, RL=8W
at 10% THD+N
– 1.1W at VDD=5V, BTL, RL=8W
– 480mW at VDD=3.3V, BTL, RL=8W
? Depop Circuitry Integrated
? Thermal Shutdown Protection and Over Current
Protection Circuitry
? High supply voltage ripple rejection
? Surface-Mount Packaging
– 8 pin SOP
? Lead Free Available (RoHS Compliant)

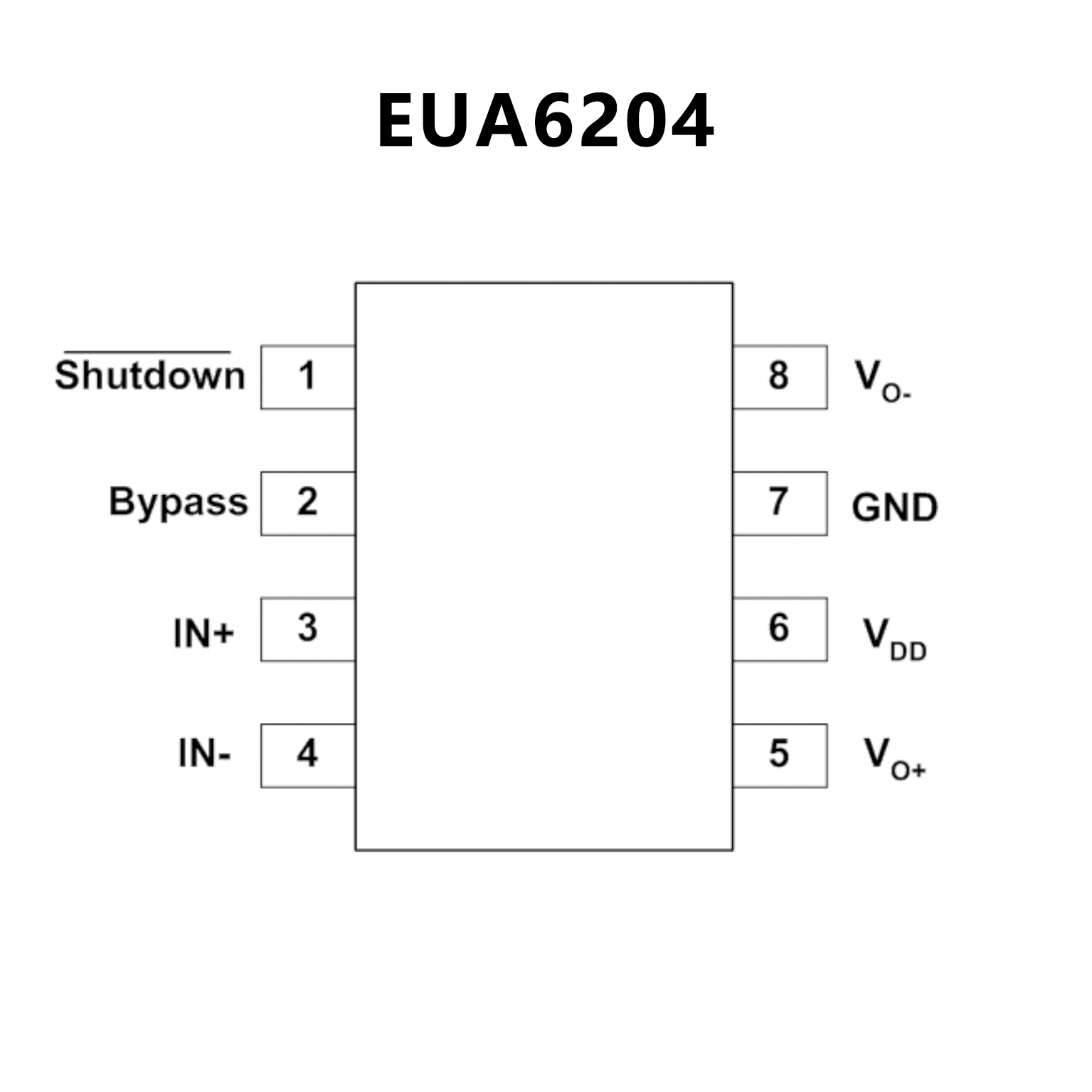

PIN CONFIGUTION
