10W Inductor Free Stereo Audio Amplifier with Low EMI and AGC, EUA2385A Replace BL6356.
EUA2385A
EUA2385A.pdf
EUA2385A.pdfFEATURES
? Wide Supply Voltage: 4.5V to 16V
? Enhanced Modulation Scheme Reduces EMI Emission
? 10-W/ch into an 6-? Load From a 12-V Supply
? 10-W/ch into an 8-? Load From a 13-V Supply
? Differential Inputs or Single-Ended input
? Speaker Protection Circuitry
? Four Selectable,Gain Setting
? Auto Gain Control Function(AGC )
? Thermal and Short-Circuit Protection
? 28-pin TSSOP Package with Thermal Pad
? RoHS compliant and 100% lead(Pb)-free
Halogen-Free

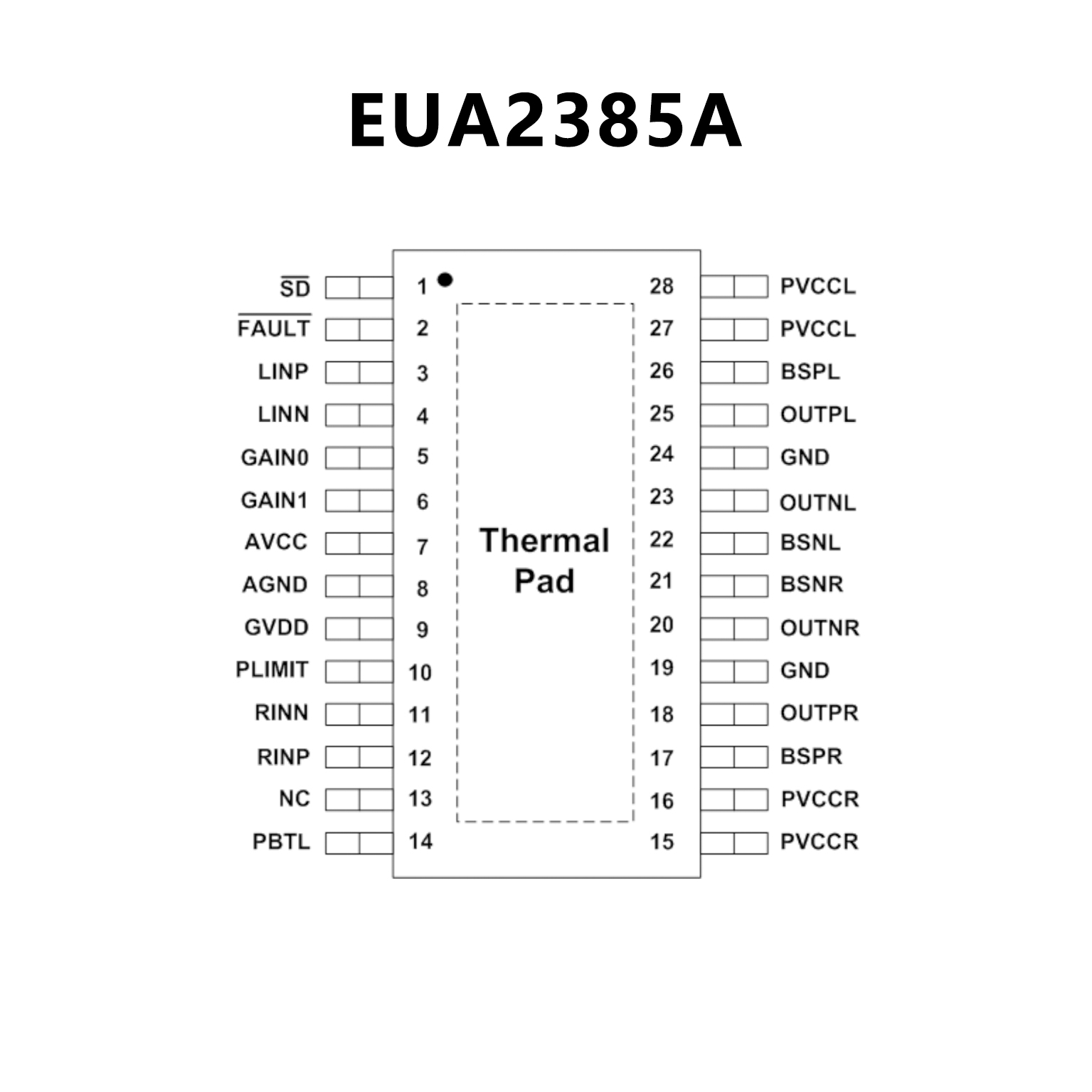

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 輸出功率 2*10W（12V, RL=8Ω, THD+N=10%）
? 4階可選增益控制
? 寬電壓工作范圍：4V-12V
? 高效率（88%@RL=8Ω,Po=4W）
? 過流、過溫保護(hù)
? ETSSOP28封裝

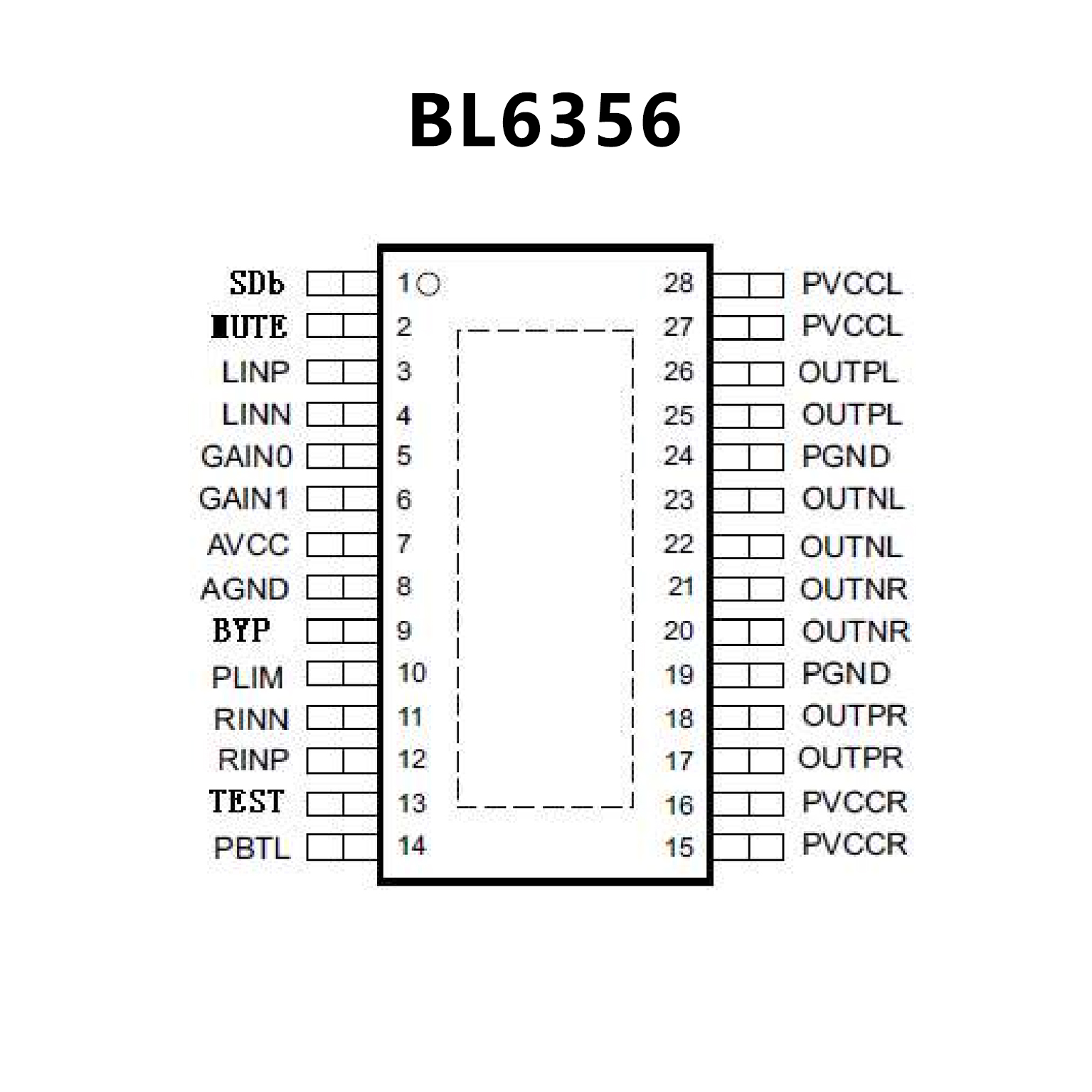

PIN CONFIGUTION
