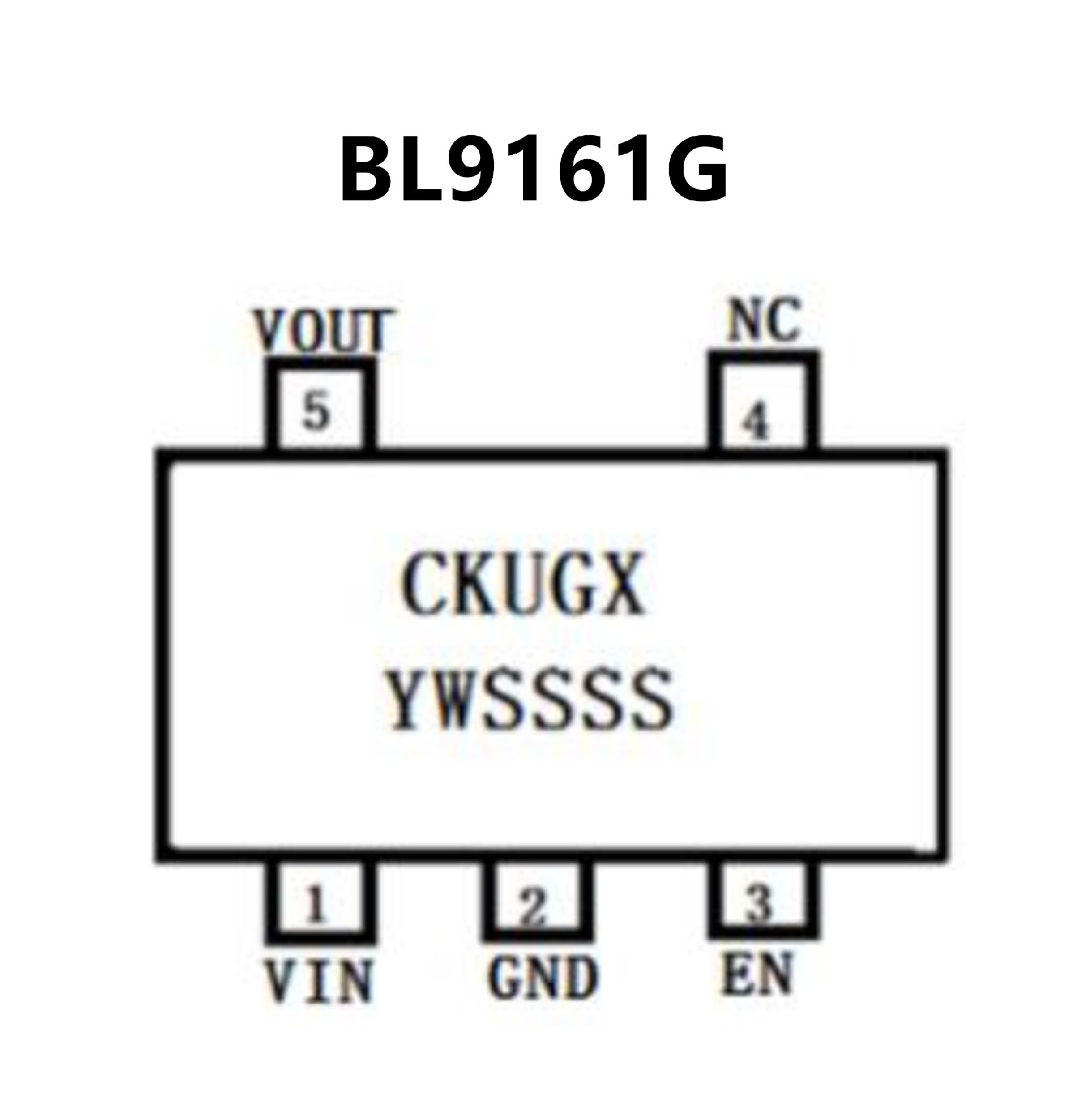

BL9161G.pdf? Ultra-low Noise
? Ultra-Fast Response in Line/LoadTransient
? 0.01μA Standby Current When Shutdown
? Low Dropout: 205mV@300mA
? Wide Operating Voltage Ranges: 2.2Vto 6V
? Low Temperature Coefficient
? Current Limiting Protection
? Thermal Shutdown Protection
? Only 1μF Output Capacitor Required forStability
? High Power Supply Rejection Ratio
? Fast output discharge
? Available in SOT23-5 ，SOT23-3,SC70-5 and DFN1×1-4L Package
? Maximum Output Current : 150mA

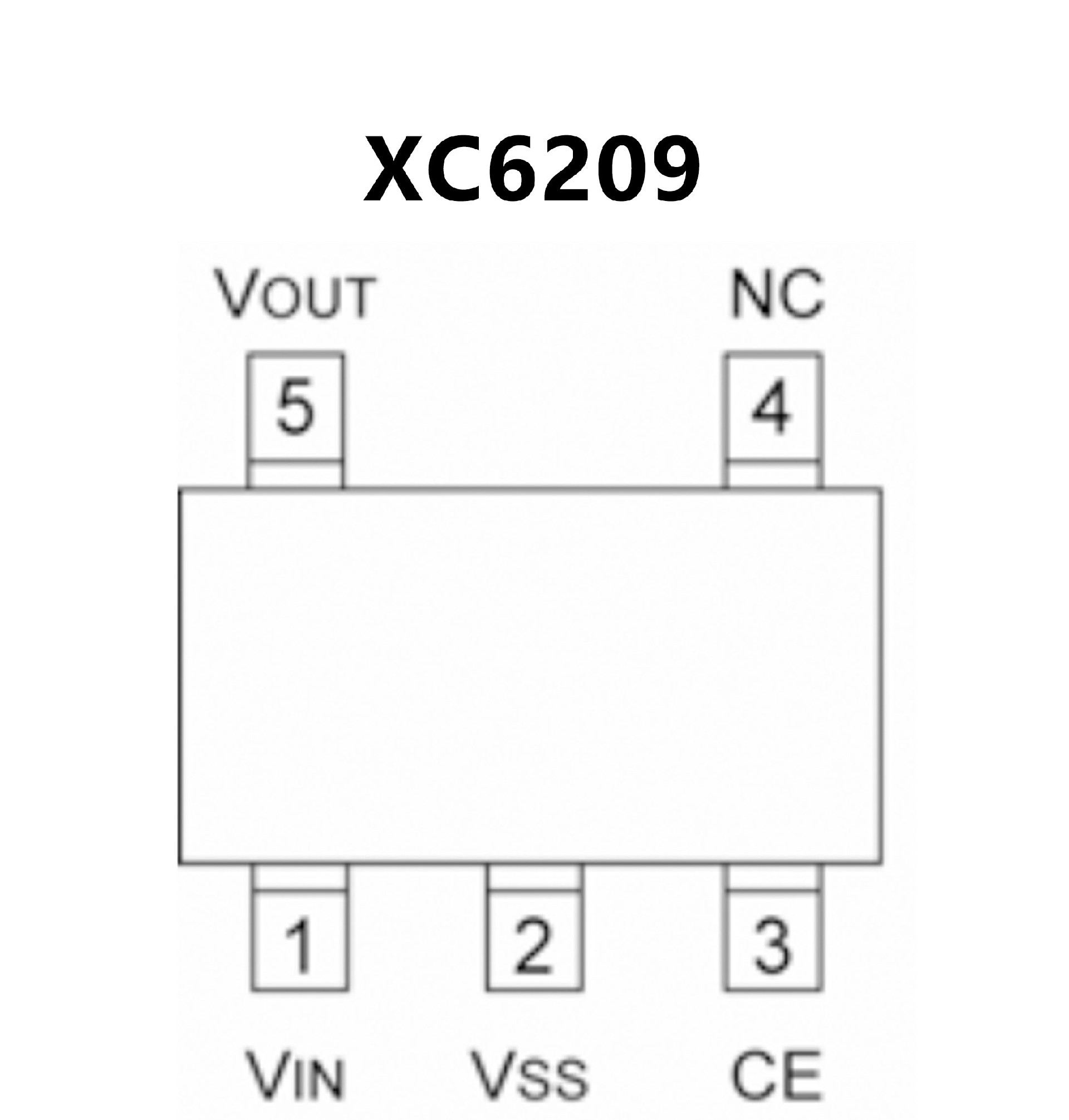

(300mA=XC6209 E to H types)
? Dropout Voltage : 60mV @ 30mA
: 200mV @ 100mA
? Maximum Operating Voltage : 2.0V ~ 10V
? Output Voltage Range: 0.9V ~ 6.0V(0.05V increments)
? Highly Accurate : ±2% (VOUT>1.5V)
±30mV (VOUT≦1.5V)
? Low Power Consumption: 25μA (TYP.)
? Standby Current : Less than 0.1μA (TYP.)
? High Ripple Rejection : 70dB (10kHz)
? Operating Ambient Temperature: -40℃~ +85℃
? Low ESR Capacitor: Ceramic capacitor
? Compatible
? Packages : SOT-25 USP-6B
? Environmentally FriendlySOT-89-5
: EU RoHS Compliant, Pb Free
