3.3V, Quad Buffer/Line Driver with 3-State Outputs,74LVTH125 Replace SN74HC125D.
74LVTH125
74LVTH125.pdf
74LVTH125.pdfFEATURES
? Quad Bus Interface
? 3-State Buffers
? Output Capability: +64mA/-32mA
? TTL Input and Output Switching Levels
? Input and Output Interface Capability to
Systemsat 5V Supply
? Bus Hold on Data Inputs Eliminates the Need
forExternal Pull-Up/Pull-Down Resistors
? Live Insertion and Extraction Permitted
? Power-Up 3-State
? No Bus Current Loading When Output is Tied to5V Bus
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

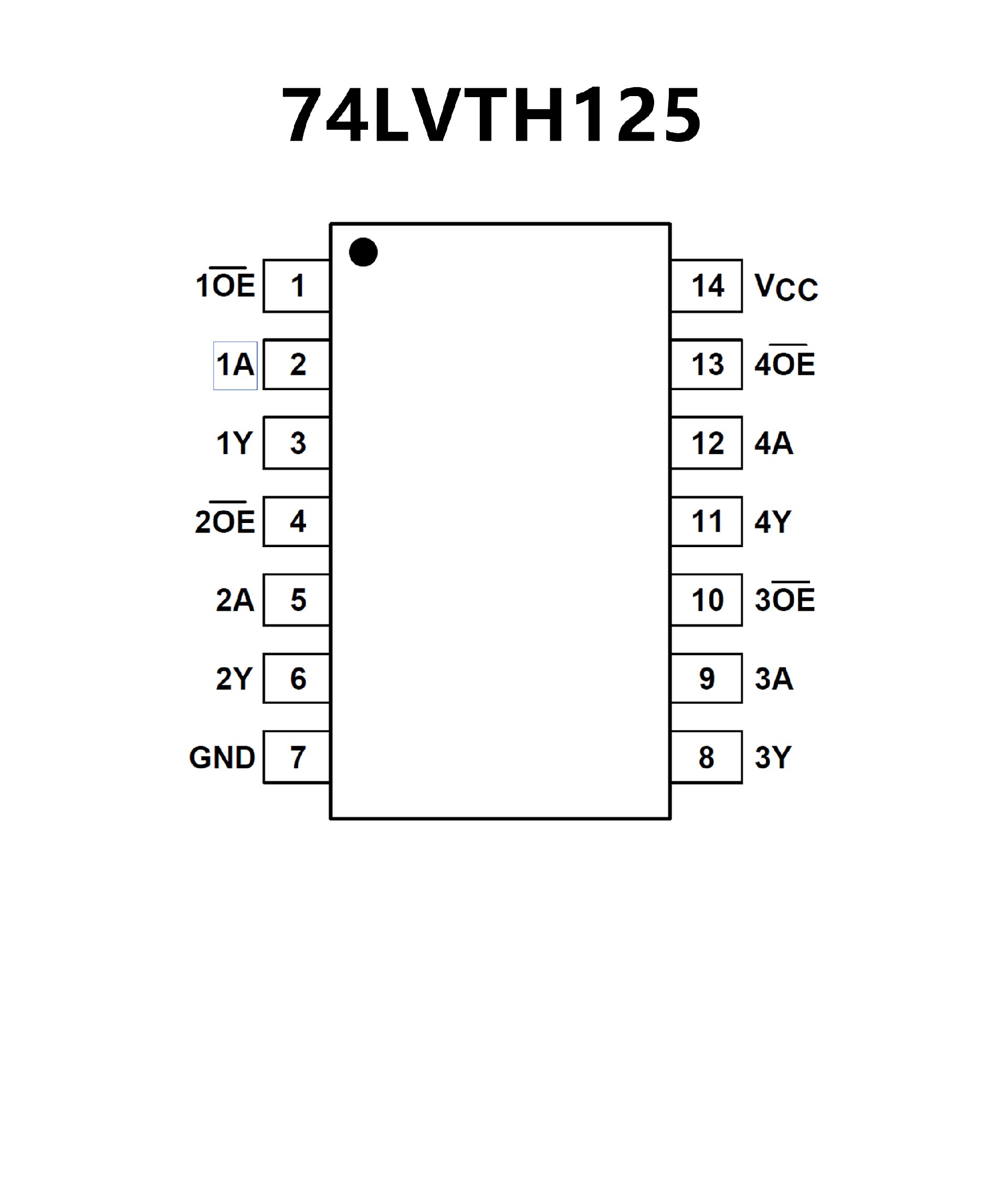

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Buffered inputs
? Wide operating voltage range: 2 V to 6 V
? Wide operating temperature range:
–40°C to +85°C
? Supports fanout up to 10 LSTTL loads
? Significant power reduction compared to LSTTL
logic ICs

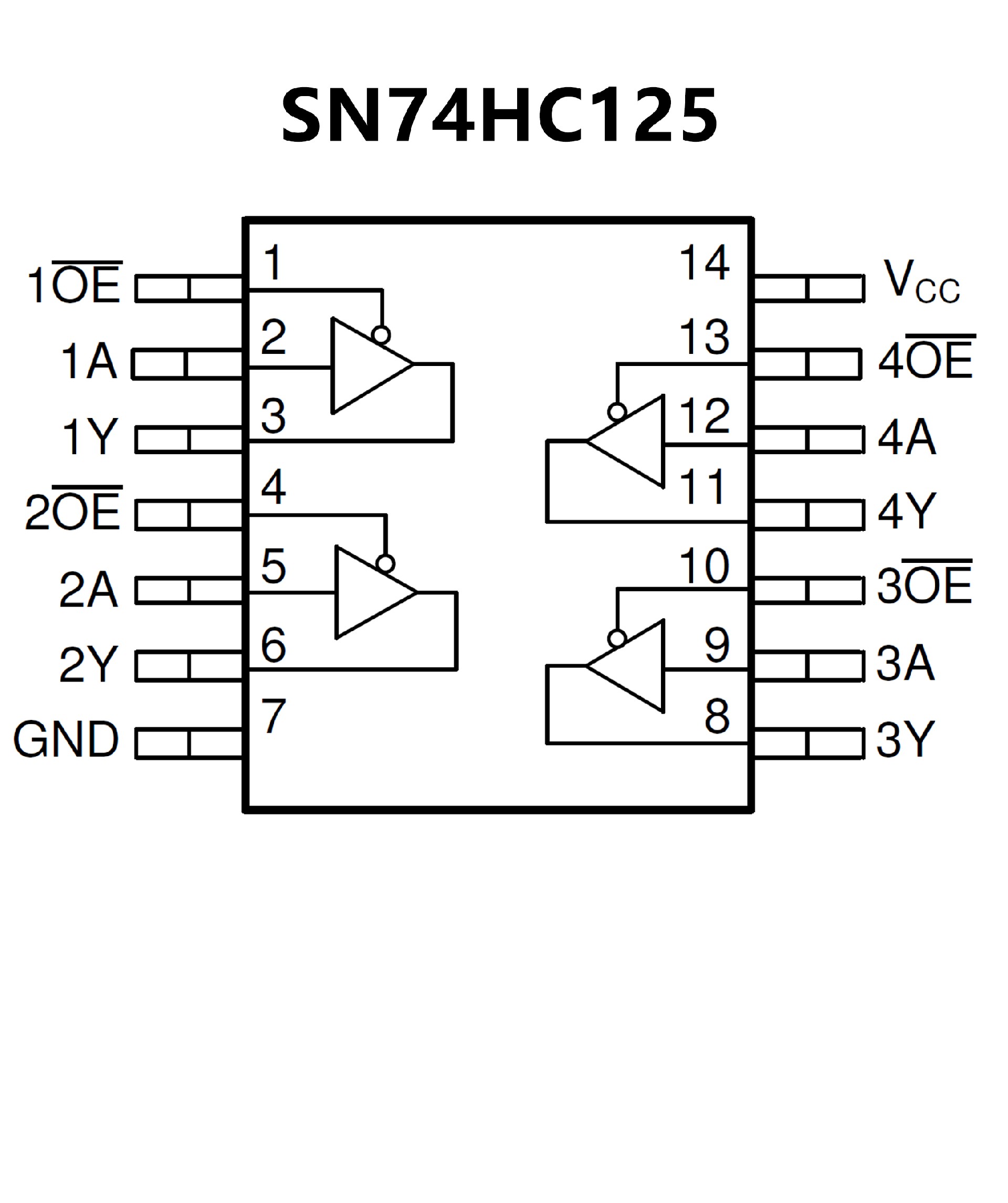

PIN CONFIGUTION
