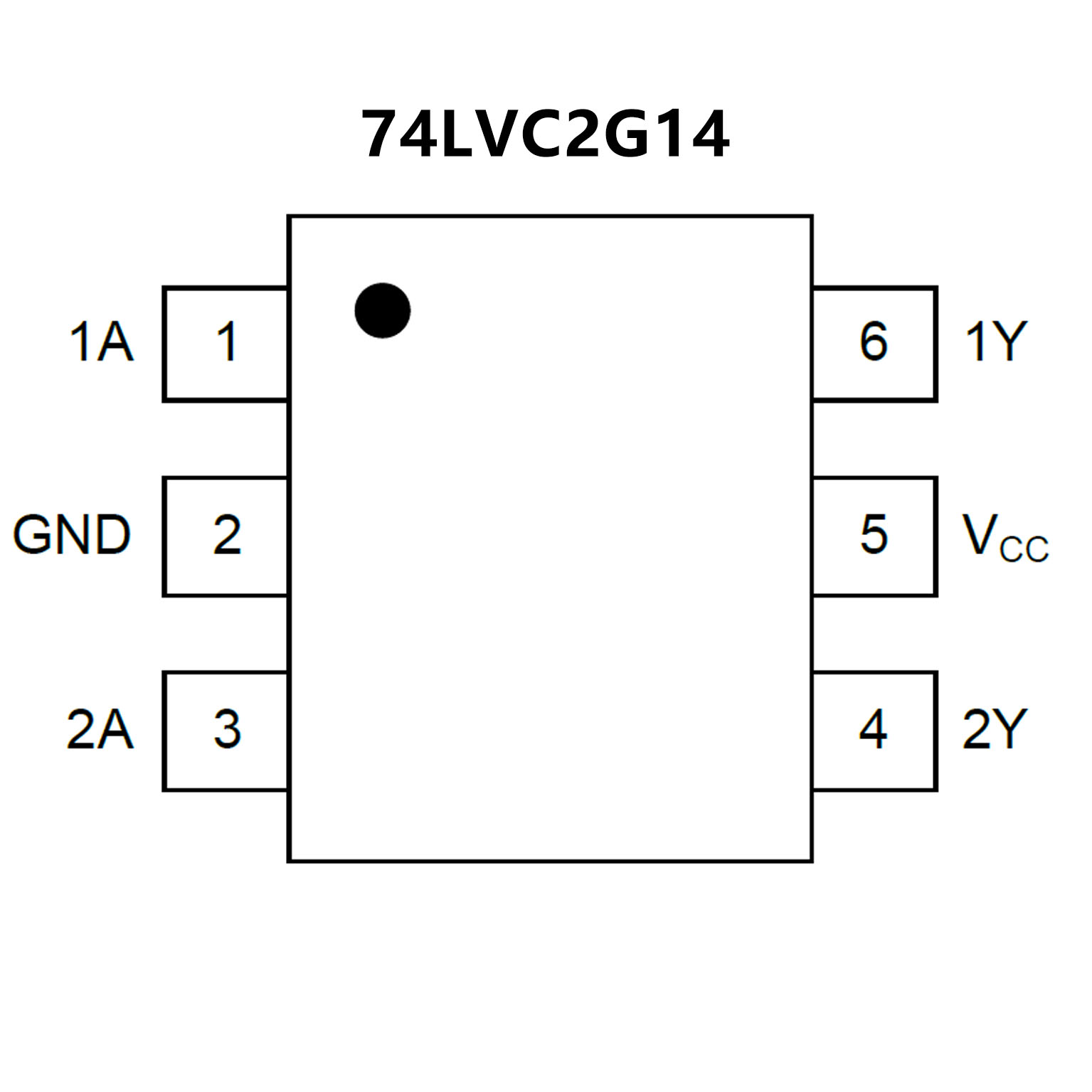

74LVC2G14.pdf? Wide Supply Voltage Range: 1.65V to 5.5V
? 5V Tolerant Inputs for Interfacing with 5V Logic
? High Noise Immunity
? ±24mA Output Drive at VCC = 3.0V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Unlimited Rise and Fall Times
? Inputs Accept Voltages up to 5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-6 Package
? Wide supply voltage range from 2.0 V to 6.0 V
? Input levels:
? For 74HC2G14: CMOS level

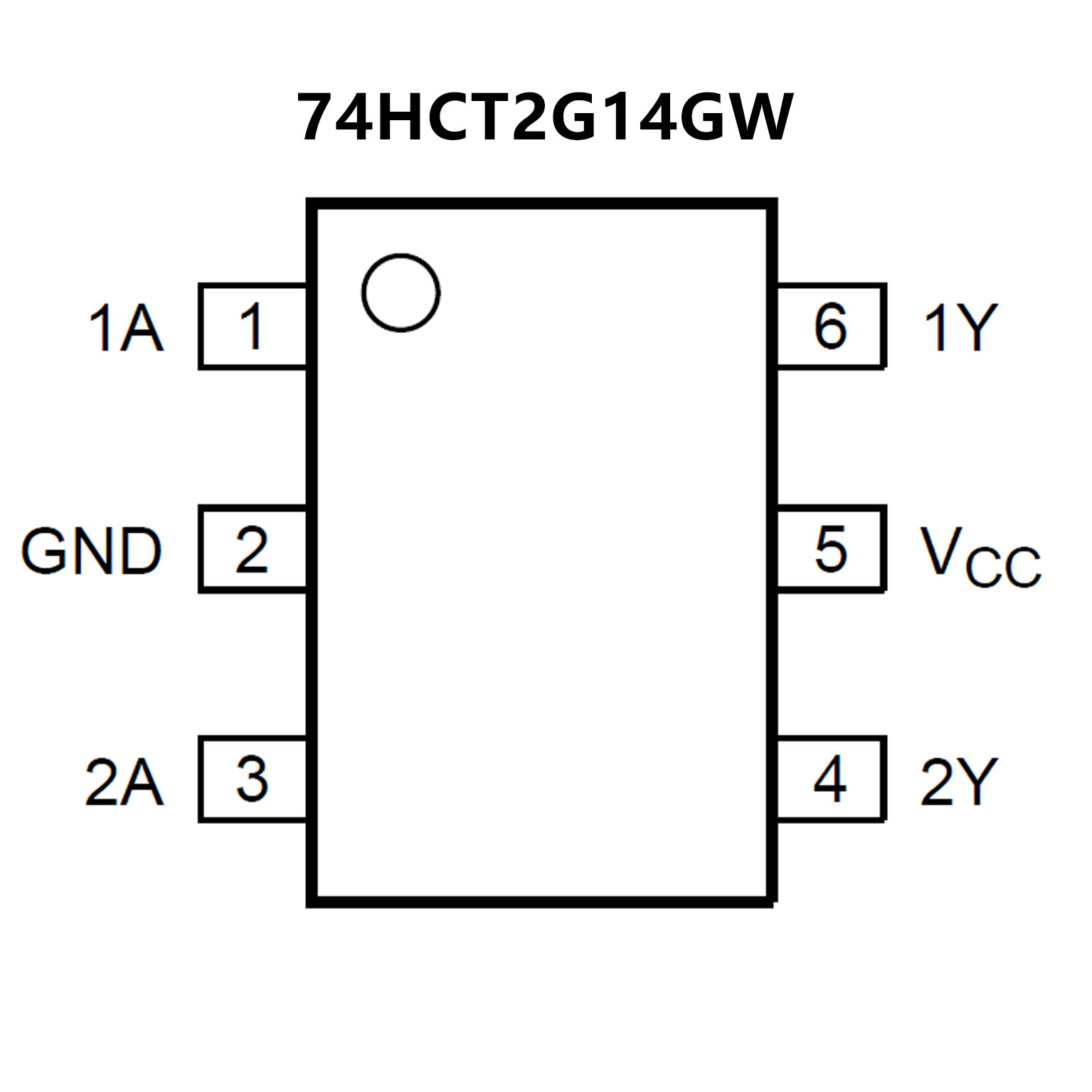

? For 74HCT2G14: TTL level
? High noise immunity
? CMOS low power dissipation
? Balanced propagation delays
? Unlimited input rise and fall times
? Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
? Complies with JEDEC standards
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
? ESD protection:
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
? Specified from -40 °C to +85 °C and -40 °C to +125 °C
