Dual Inverter,74LVC2G04XC6G Replace SN74AUP2G04.
74LVC2G04XC6G
74LVC2G04XC6G.pdf
74LVC2G04XC6G.pdfFEATURES
? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.65V to 5.5V
? High Noise Immunity
? ±24mA Output Drive at VCC = 3.0V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-6 Package

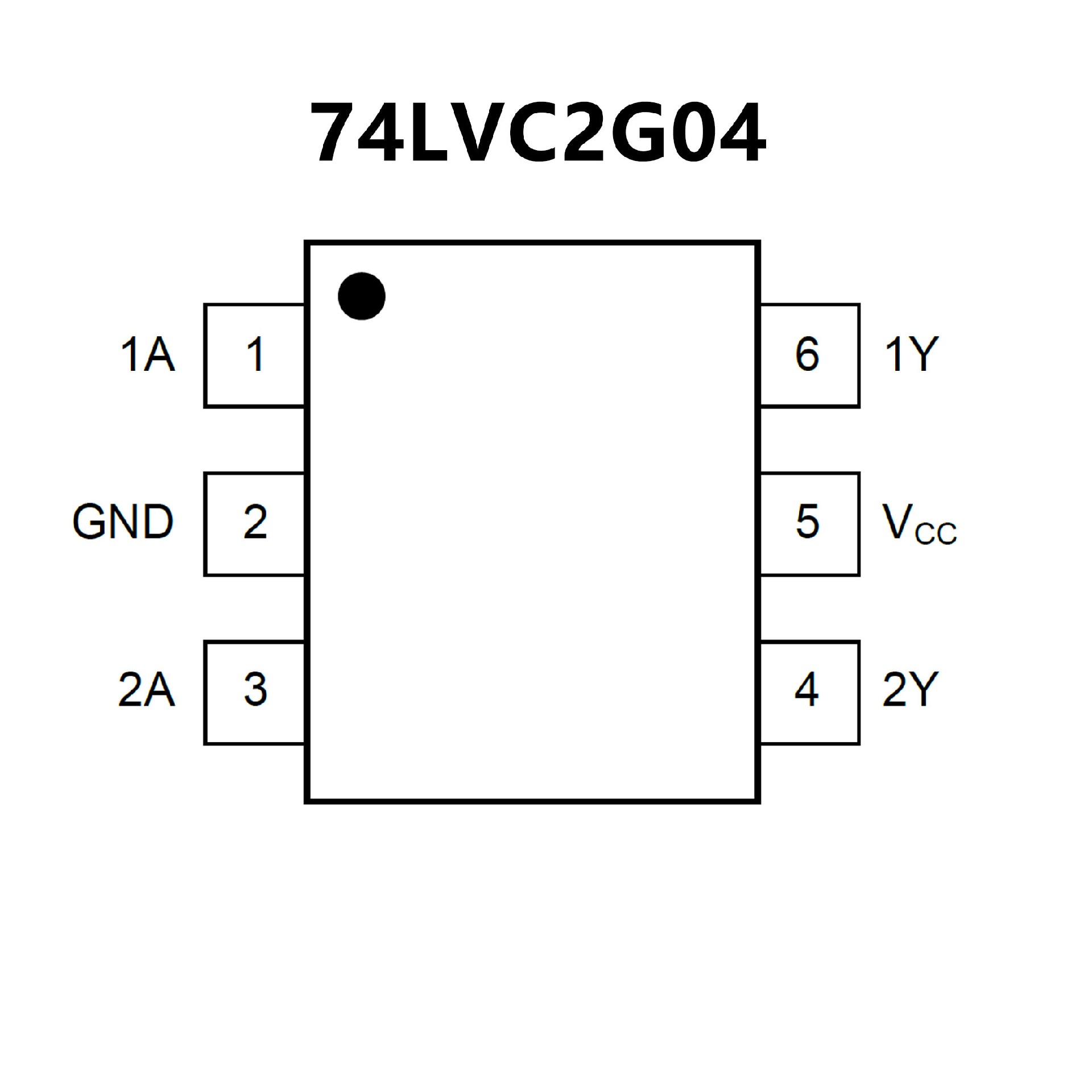

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Available in the Texas Instruments NanoStar? Package
? Low Static-Power Consumption:
ICC = 0.9 mA Max
? Low Dynamic-Power Consumption:
Cpd = 4.3 pF Typ at 3.3 V
? Low Input Capacitance: Ci = 1.5 pF Typ
? Low Noise: Overshoot and Undershoot
<10% of VCC
? Ioff Supports Partial-Power-Down Mode Operation
? Wide Operating VCC Range of 0.8 V to 3.6 V

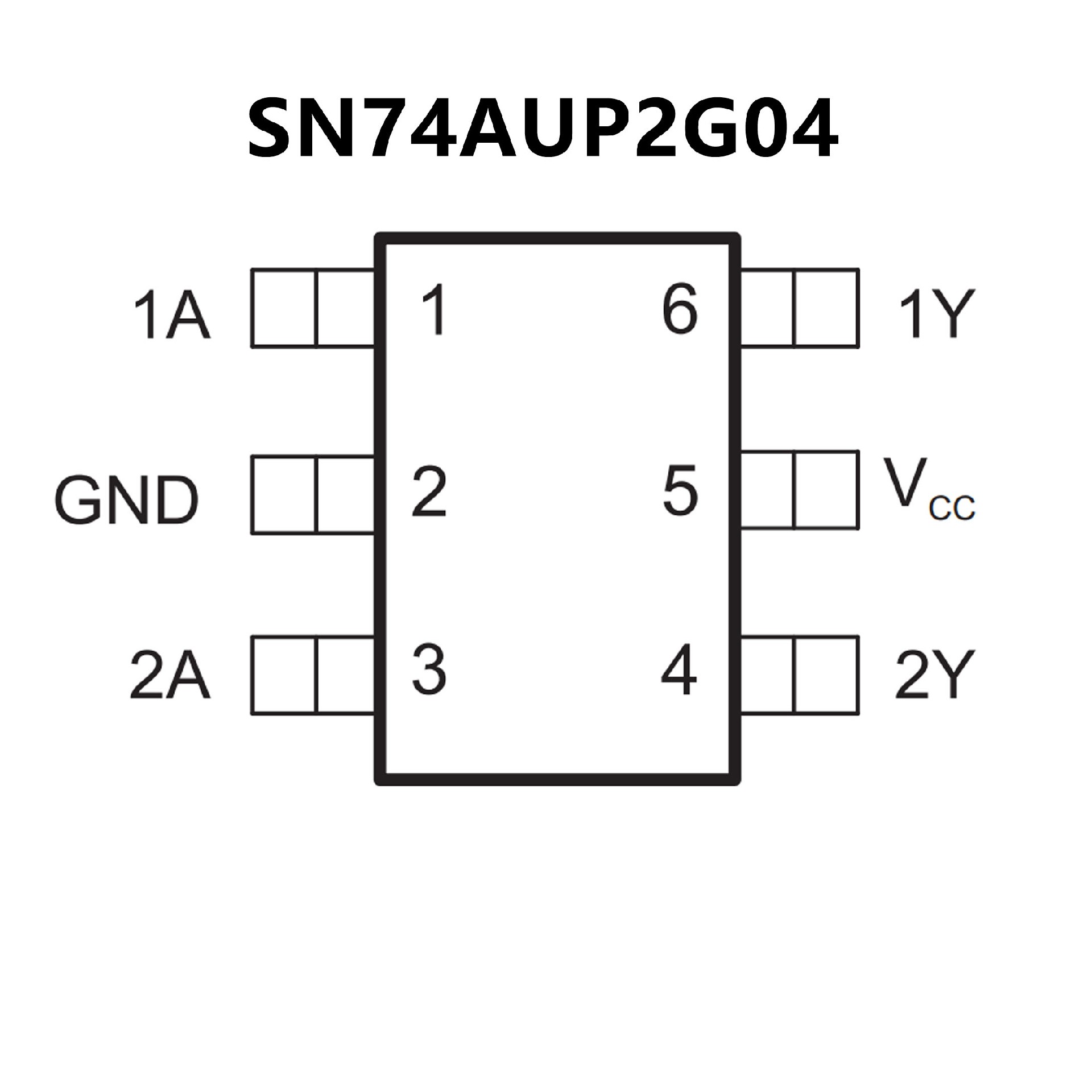

PIN CONFIGUTION
