Single 2-Input OR Gate,74LVC1G32XN5G Replace SN74AHC1G32.
74LVC1G32XN5G
74LVC1G32XN5G.pdf
74LVC1G32XN5G.pdfFEATURES
? Wide Supply Voltage Range: 1.65V to 5.5V
? High Noise Immunity
? ±24mA Output Drive at VCC = 3.0V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package

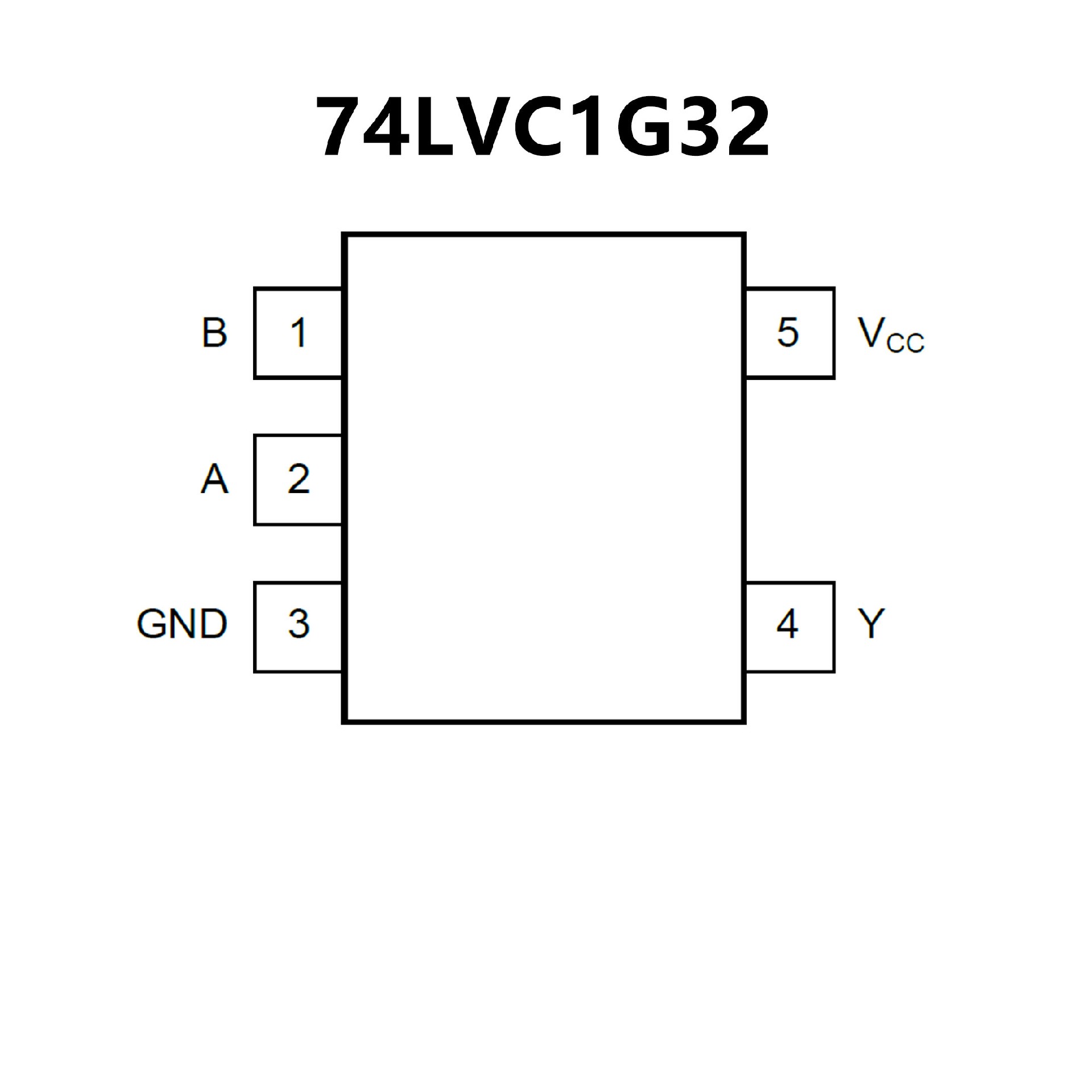

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Operating Range of 2 V to 5.5 V
? Max tpd of 6.5 ns at 5 V
? Low Power Consumption, 10-μA Max ICC
? ±8-mA Output Drive at 5 V
? Schmitt-Trigger Action at All Inputs Makes the
Circuit Tolerant for Slower Input Rise and Fall
Time
? Latch-Up Performance Exceeds 250 mA Per
JESD 17

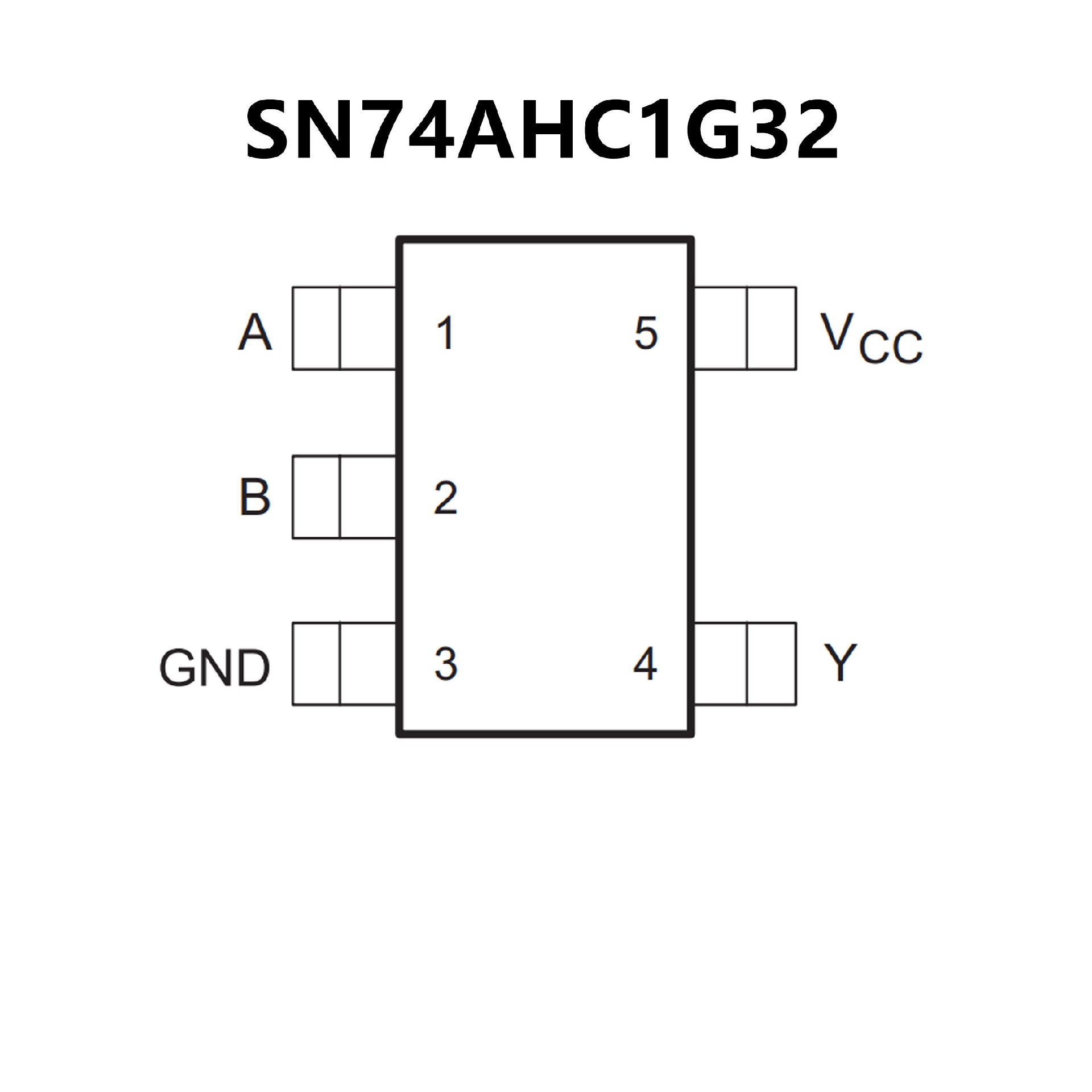

PIN CONFIGUTION
