Single Inverter Gate,74LVC1G04XKB5G Replace SN74LVC1G04
74LVC1G04XKB5G.pdf優(yōu)勢(shì)替代
FEATURES
Available in the Ultra-Small 0.64-mm2
? Package (DPW) with 0.5-mm Pitch
? Supports 5-V VCC Operation
? Inputs Accept Voltages up to 5.5 V
Allowing Down Translation to VCC
? Max tpd of 3.3 ns at 3.3-V
Low Power Consumption, 10-μA Max I
±24-mA Output Drive at 3.3-V
Ioff Supports Live-Insertion, Partial-
Power-Down Mode, and Back-Drive Protection
? Latch-Up Performance Exceeds
100 mA Per JESD 78, Class II
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

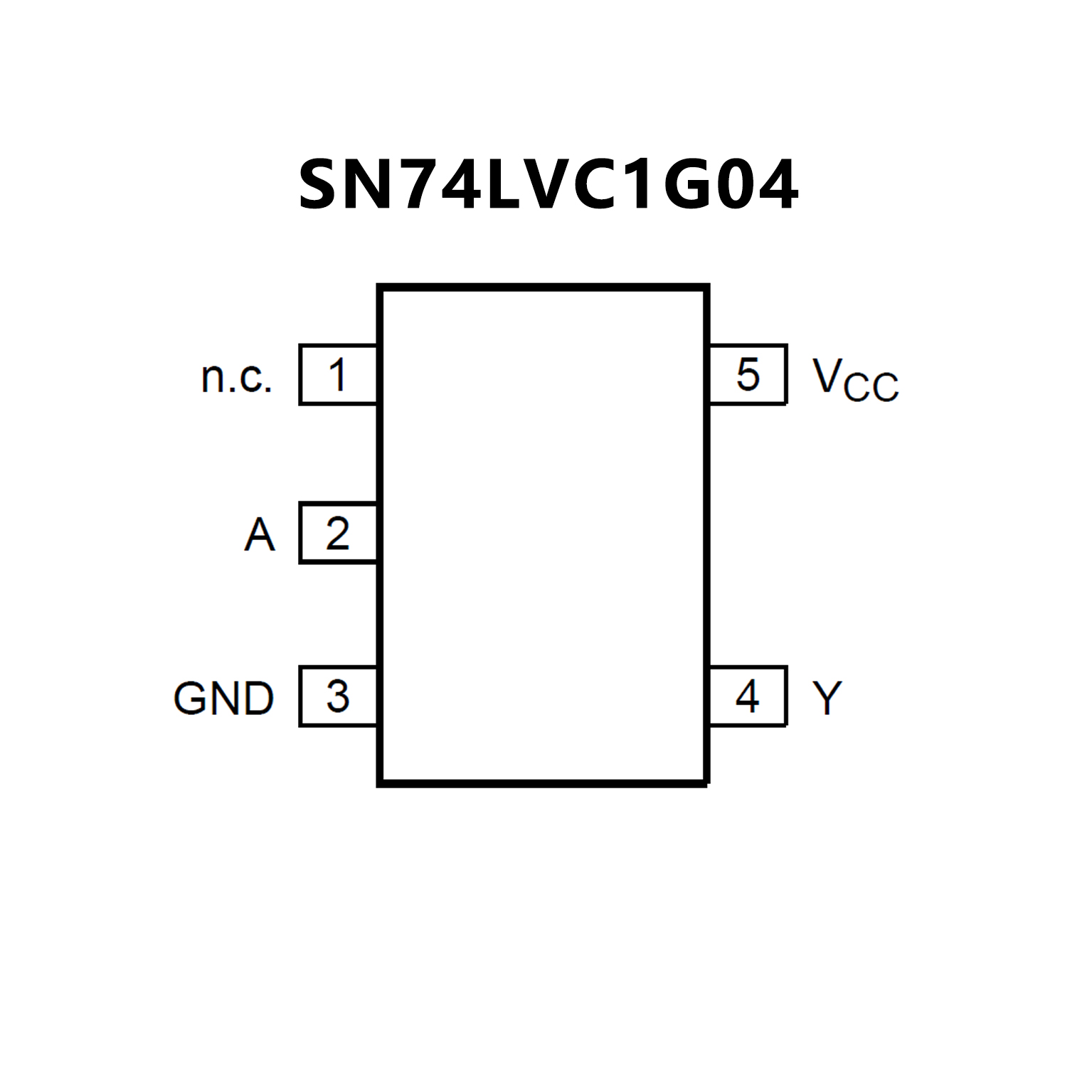

PIN CONFIGUTION
