Quad 2-Input AND Gate,74LVC08XS14G Replace SN74HC08DR.
74LVC08XS14G
74LVC08XS14G.pdf
74LVC08XS14G.pdfFEATURES
? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

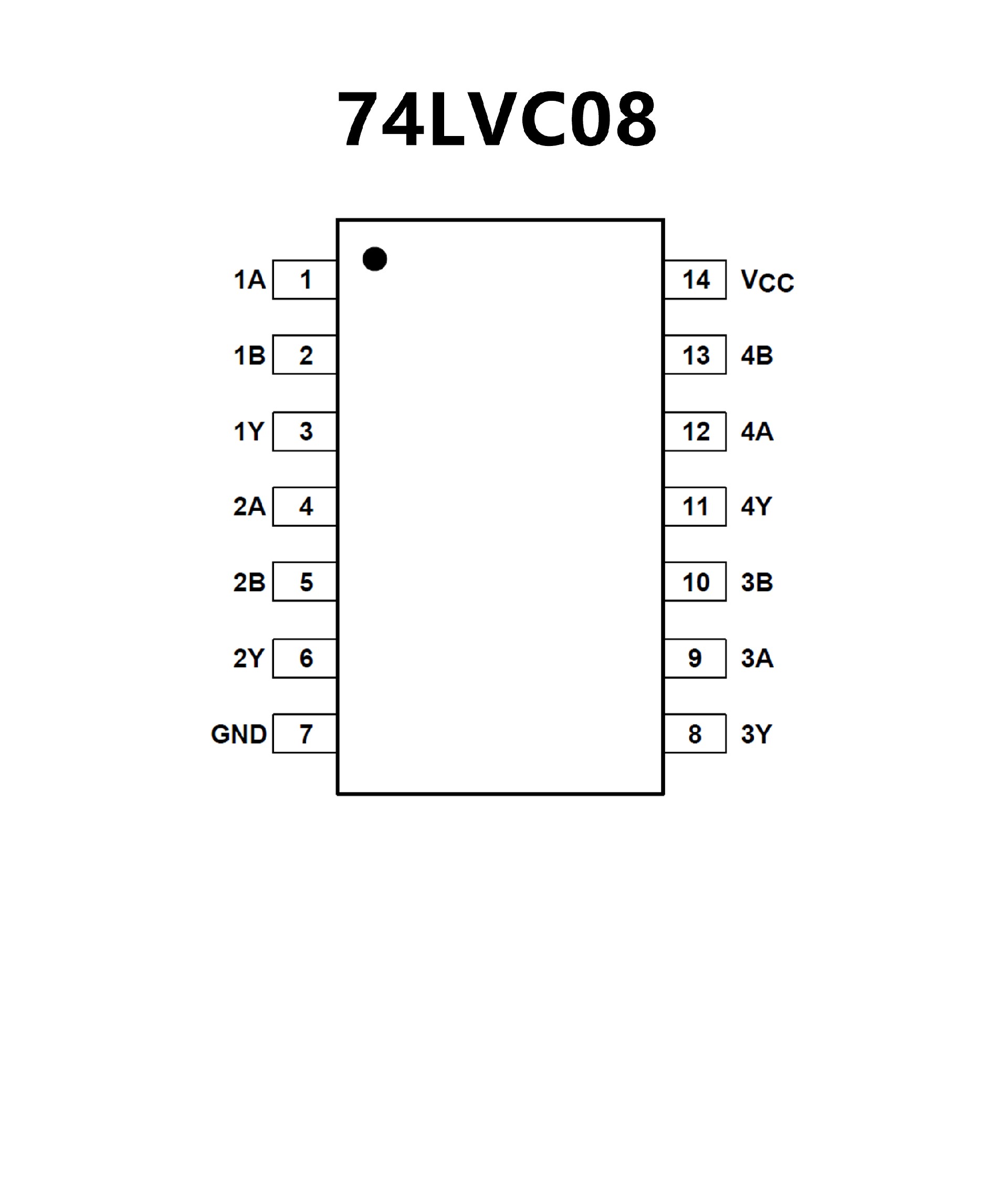

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 緩沖輸入
? 寬工作電壓范圍：2V 至 6V
? 寬工作溫度范圍：
–40°C 至 +85°C
? 支持多達 10 個 LSTTL 負載的扇出
? 與 LSTTL 邏輯 IC 相比，可顯著降低功耗

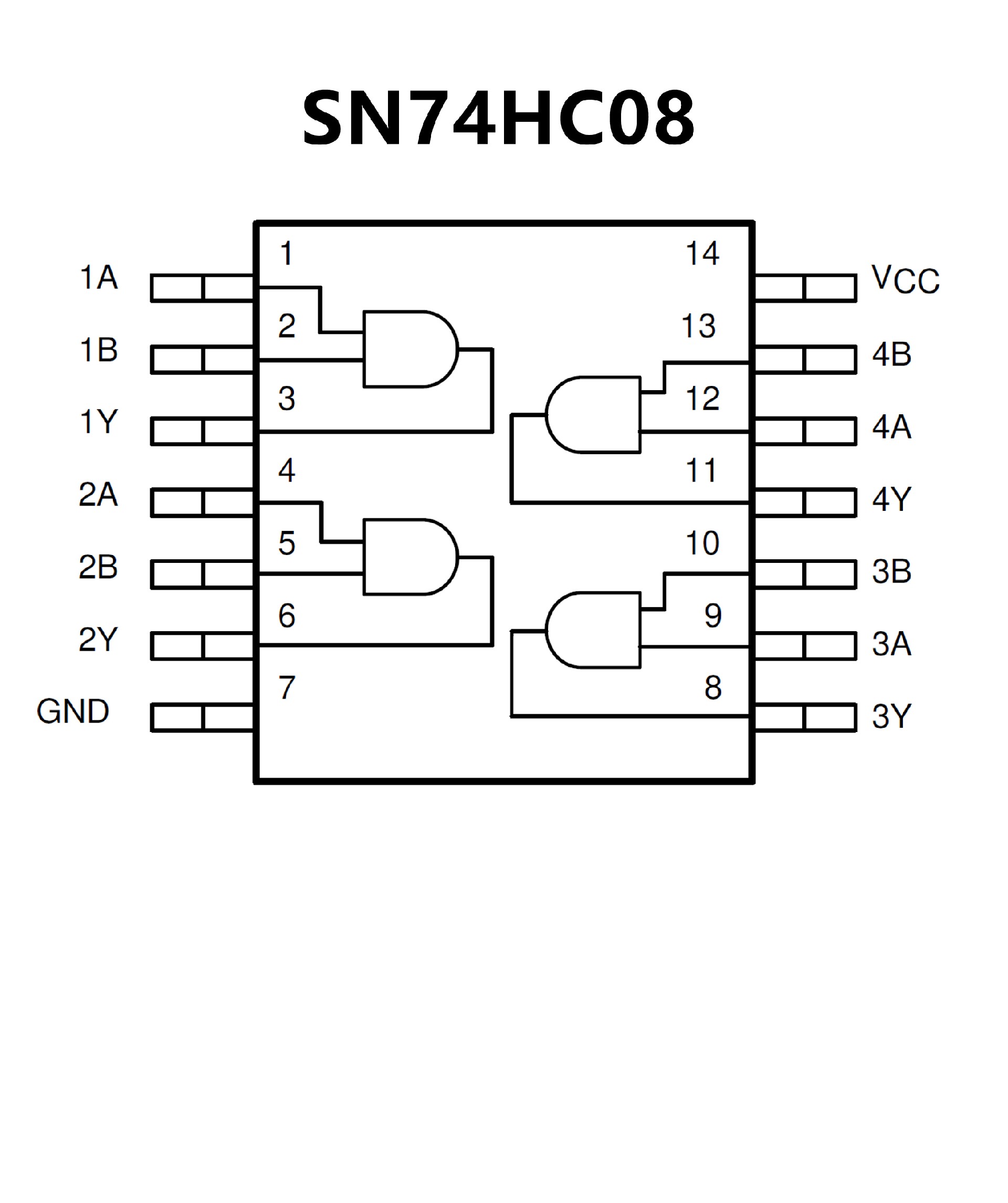

PIN CONFIGUTION
