Quad 2 Input AND Gate, 74LVC08 Replace SN74ACT08.
74LVC08
74LVC08.pdf
74LVC08.pdfFEATURES
? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

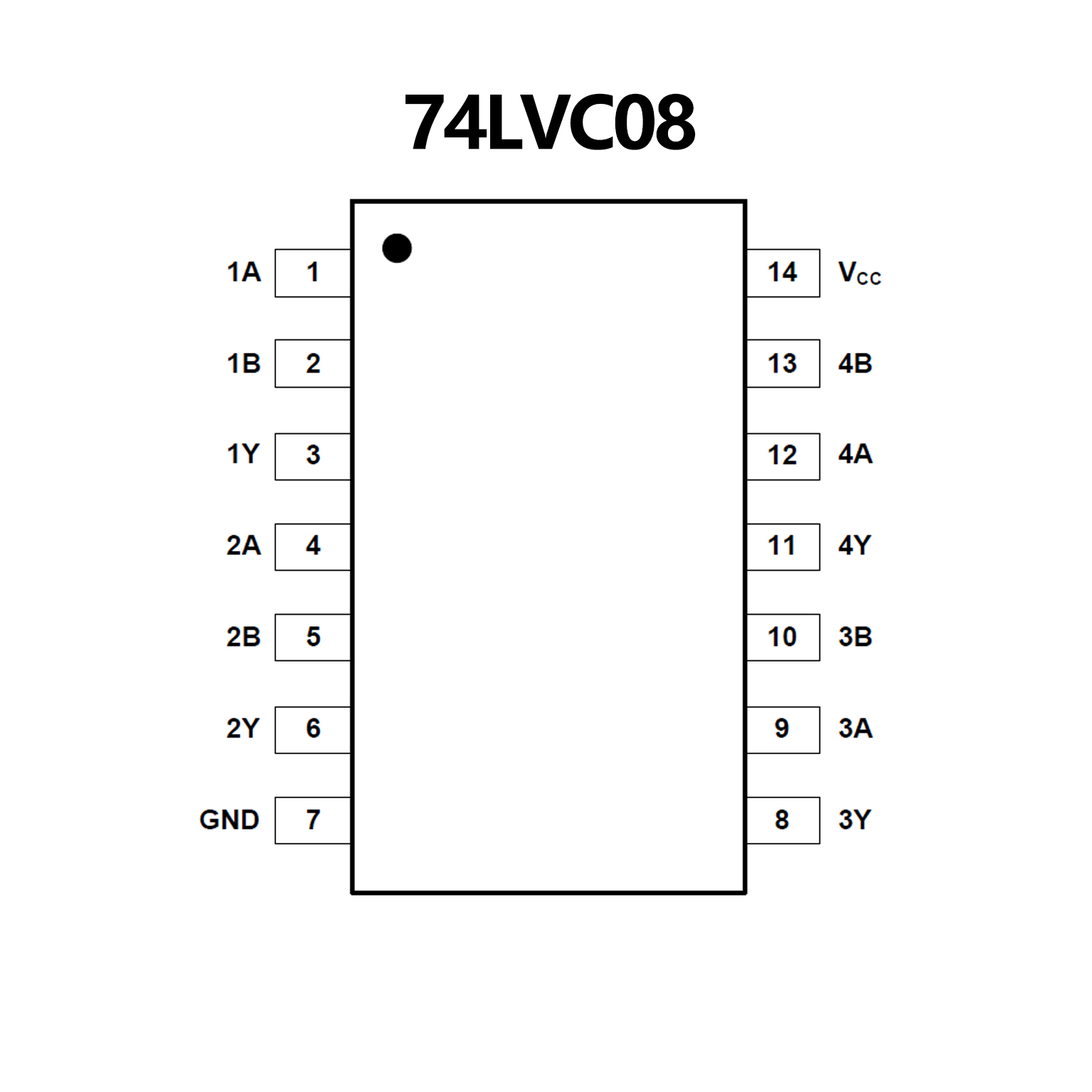

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 4.5-V to 5.5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Max tpd of 10 ns at 5 V
? Inputs Are TTL-Voltage Compatible

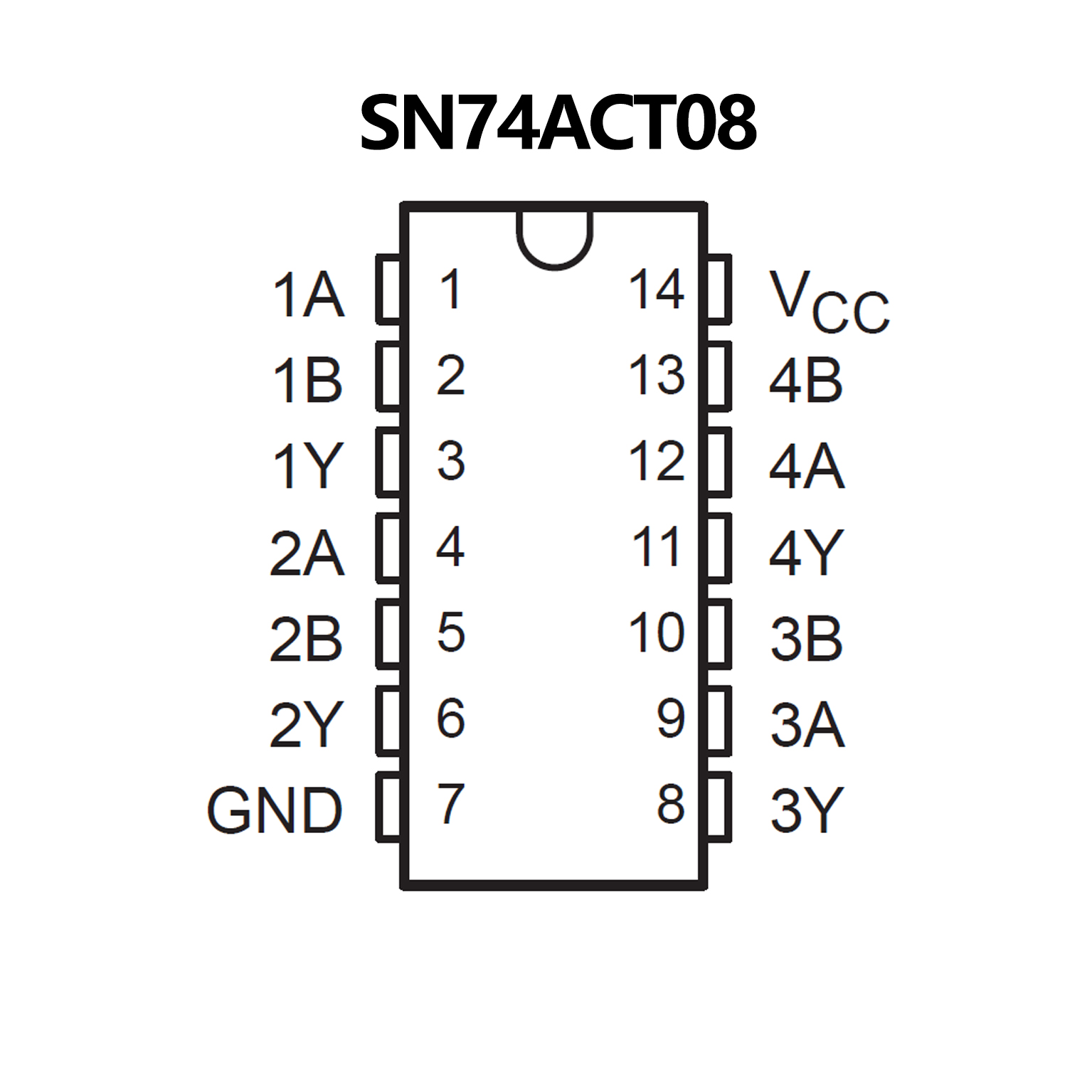

PIN CONFIGUTION
