Single 2-Input Translating AND Gate,74LV1T08 Replace SN74AHC1G09.
74LV1T08
74LV1T08.pdf
74LV1T08.pdfFEATURES
? Single Supply Voltage Translator at 1.8V, 2.5V,
3.3V and 5.0V
? Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
? Down Translation:
3.3V to 1.8V at VCC = 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
? 5V Tolerant Inputs
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package

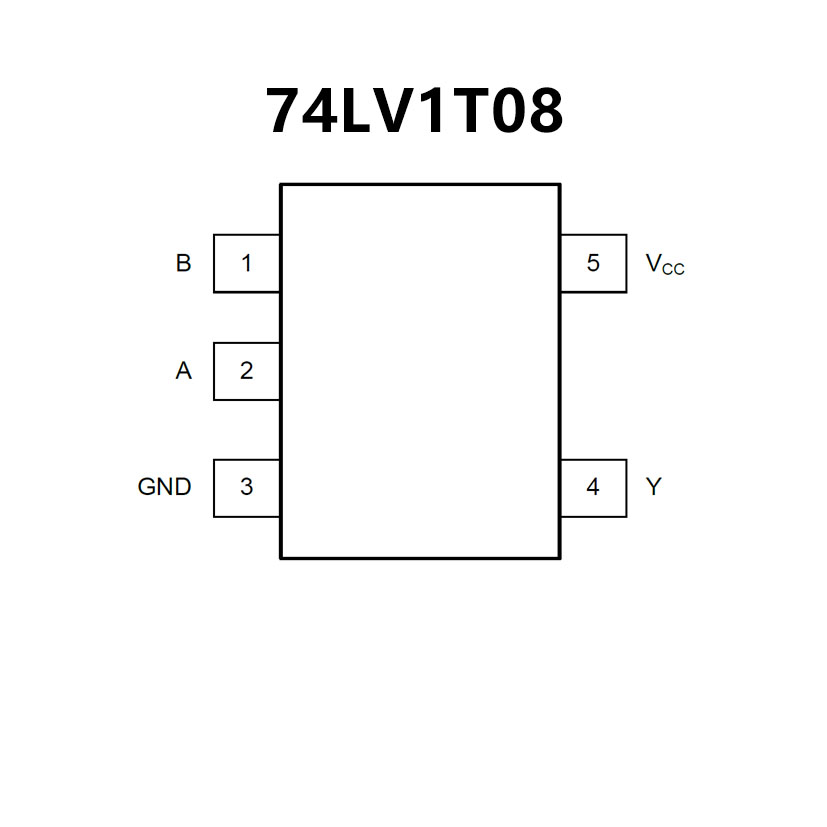

PIN CONFIGUTION
優勢替代
FEATURES
? 工作范圍：2V 至5.5V
? 最長tpd：6ns（5V 時）
? 電壓為5V 時，輸出驅動為±8mA
? 所有輸入支持施密特觸發操作，使得電路允許輸入
緩慢上升和下降
? 鎖存性能超過250mA，符合JESD 17 規范
? 靜電放電(ESD) 保護性能超過JESD 22 規范要求：
2000V 人體模型(A114-A)
1000V 充電器件模型(C101)

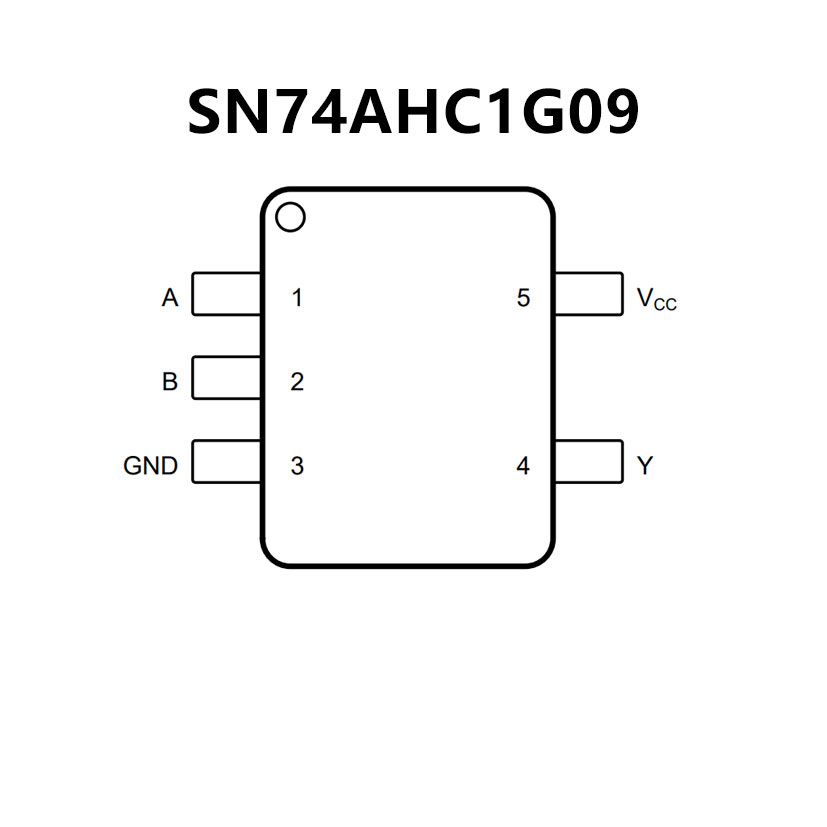

PIN CONFIGUTION
