Quad 2-Input Exclusive-OR Gate,74AHCT86 Replace MC74HC86A.
74AHCT86
74AHCT86.pdf
74AHCT86.pdfFEATURES
? Balanced Propagation Delays
? All Inputs Have Schmitt Trigger Actions
? Inputs Accept Voltages Higher Than VCC
? Operates with TTL Input Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

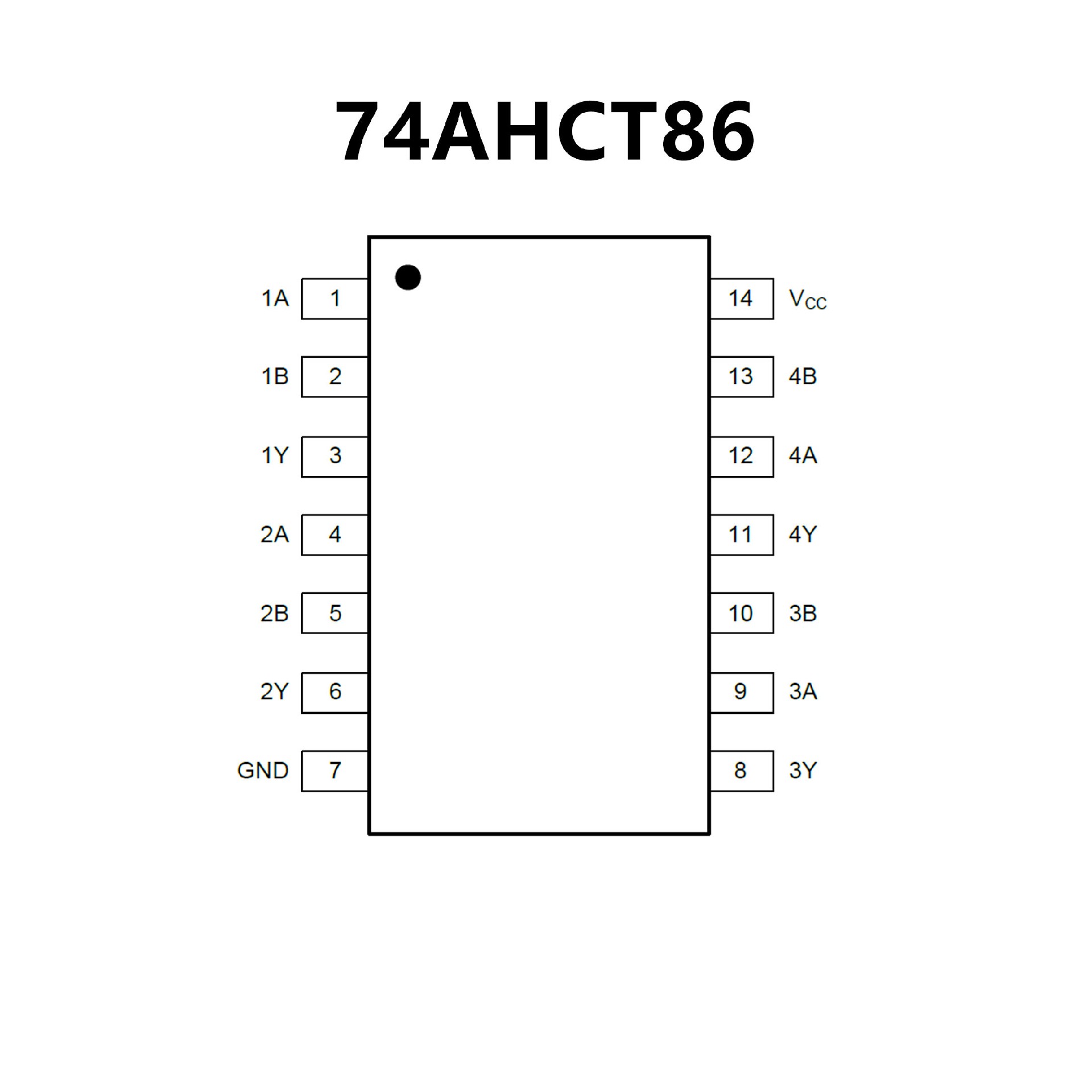

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Output Drive Capability: 10 LSTTL Loads
? Outputs Directly Interface to CMOS, NMOS, and TTL
? Operating Voltage Range: 2.0 to 6.0 V
? Low Input Current: 1μA
? High Noise Immunity Characteristic of CMOS Devices
? In Compliance with JEDEC Standard No. 7 A Requirements
? Chip Complexity: 56 FETs or 14 Equivalent Gates
? NLV Prefix for Automotive and Other Applications Requirin
g Unique Site and Control Change Requirements;
AEC?Q100 Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen Free and
are RoHS Compliant

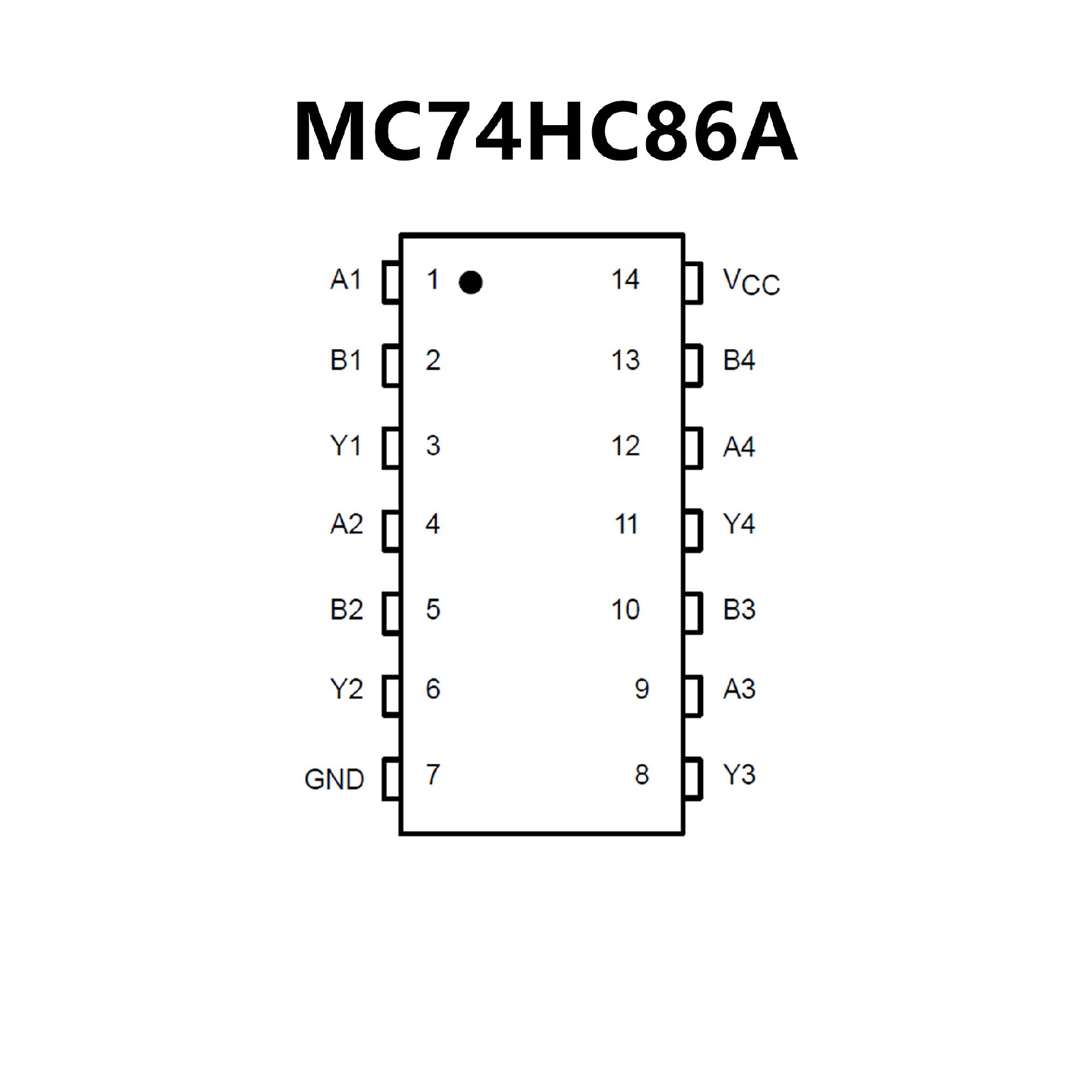

PIN CONFIGUTION
