Quad 2-Input Exclusive-OR Gate,74AHCT86 Replace HEF4070BT.
74AHCT86
74AHCT86.pdf
74AHCT86.pdfFEATURES
? Balanced Propagation Delays
? All Inputs Have Schmitt Trigger Actions
? Inputs Accept Voltages Higher Than VCC
? Operates with TTL Input Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package
PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Fully static operation
? 5 V, 10 V, and 15 V parametric ratings
? CMOS low power dissipation
? High noise immunity
? Standardized symmetrical output characteristics
? Complies with JEDEC standard JESD 13-B
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-B exceeds 200 V
? Specified from -40 °C to +85 °C

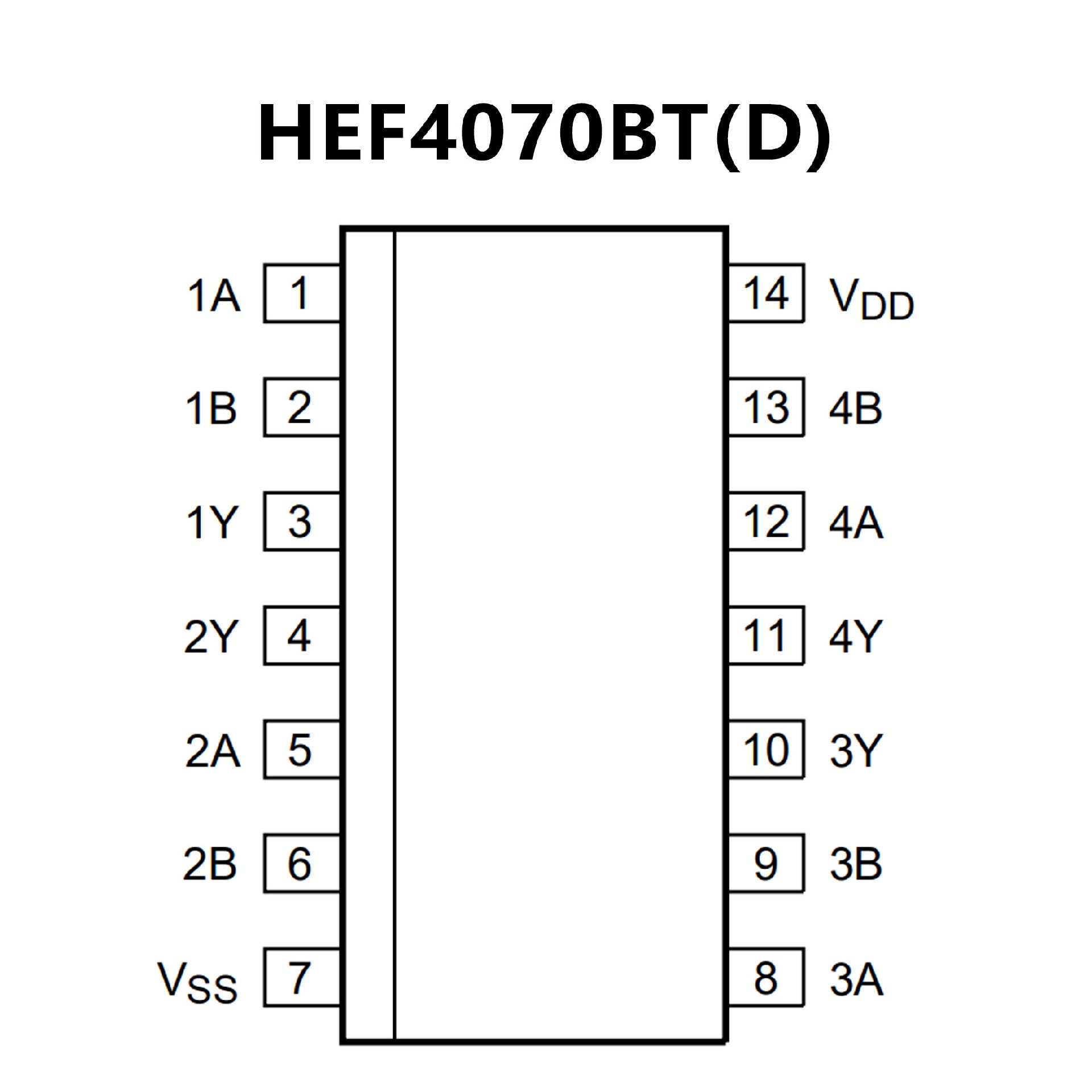

PIN CONFIGUTION
