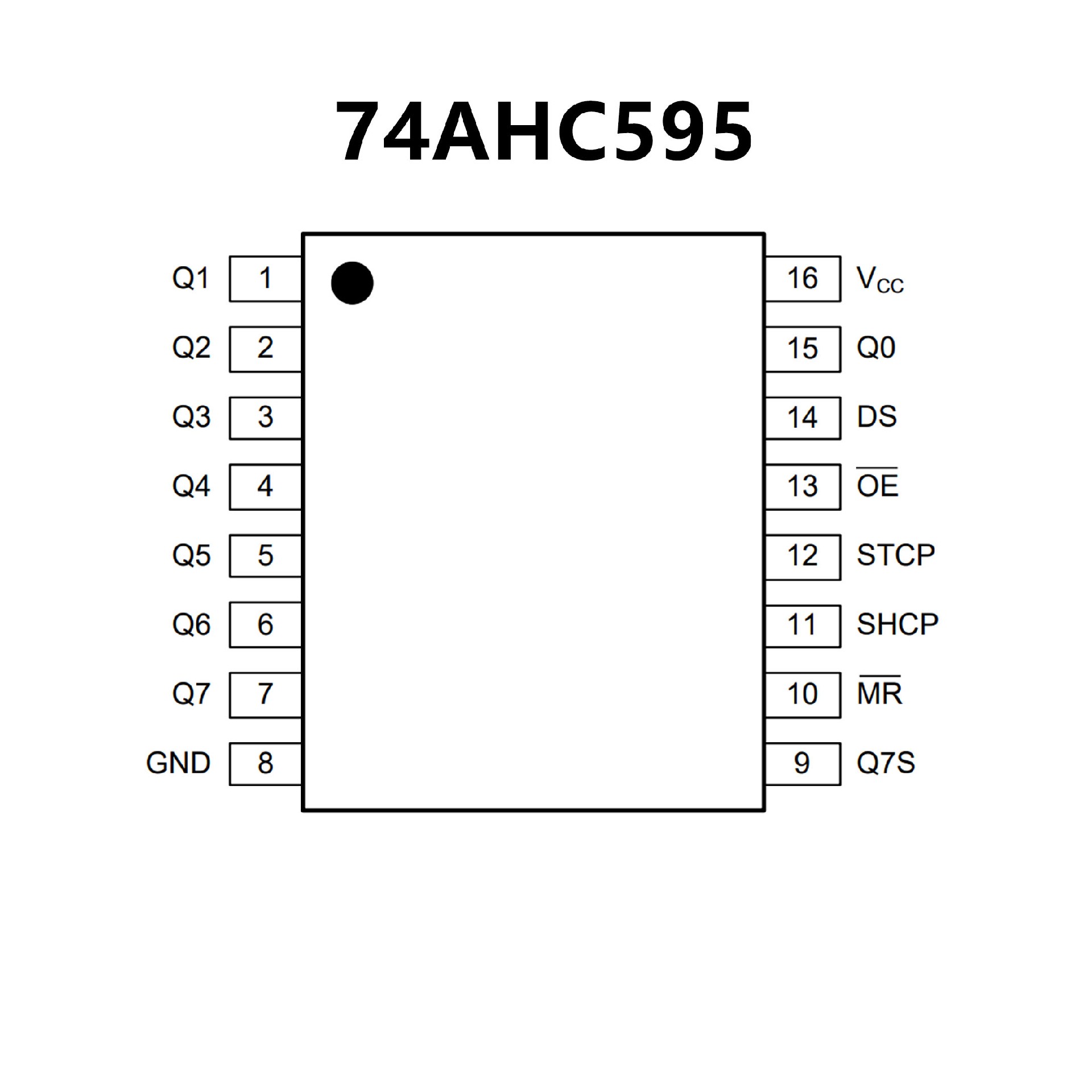

74AHC595.pdf? Balanced Propagation Delays
? All Inputs Have Schmitt-Trigger Action
? Inputs Accept Voltages Higher than VCC
? Operates with CMOS Input Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-16 Package
? Output Drive Capability: 15 LSTTL Loads
? Outputs Directly Interface to CMOS, NMOS, and TTL
? Operating Voltage Range: 2.0 to 6.0 V
? Low Input Current: 1.0 μA
? High Noise Immunity Characteristic of CMOS Devices
? In Compliance with the Requirements
Defined by JEDEC Standard No. 7 A
? Chip Complexity: 328 FETs or 82 Equivalent Gates

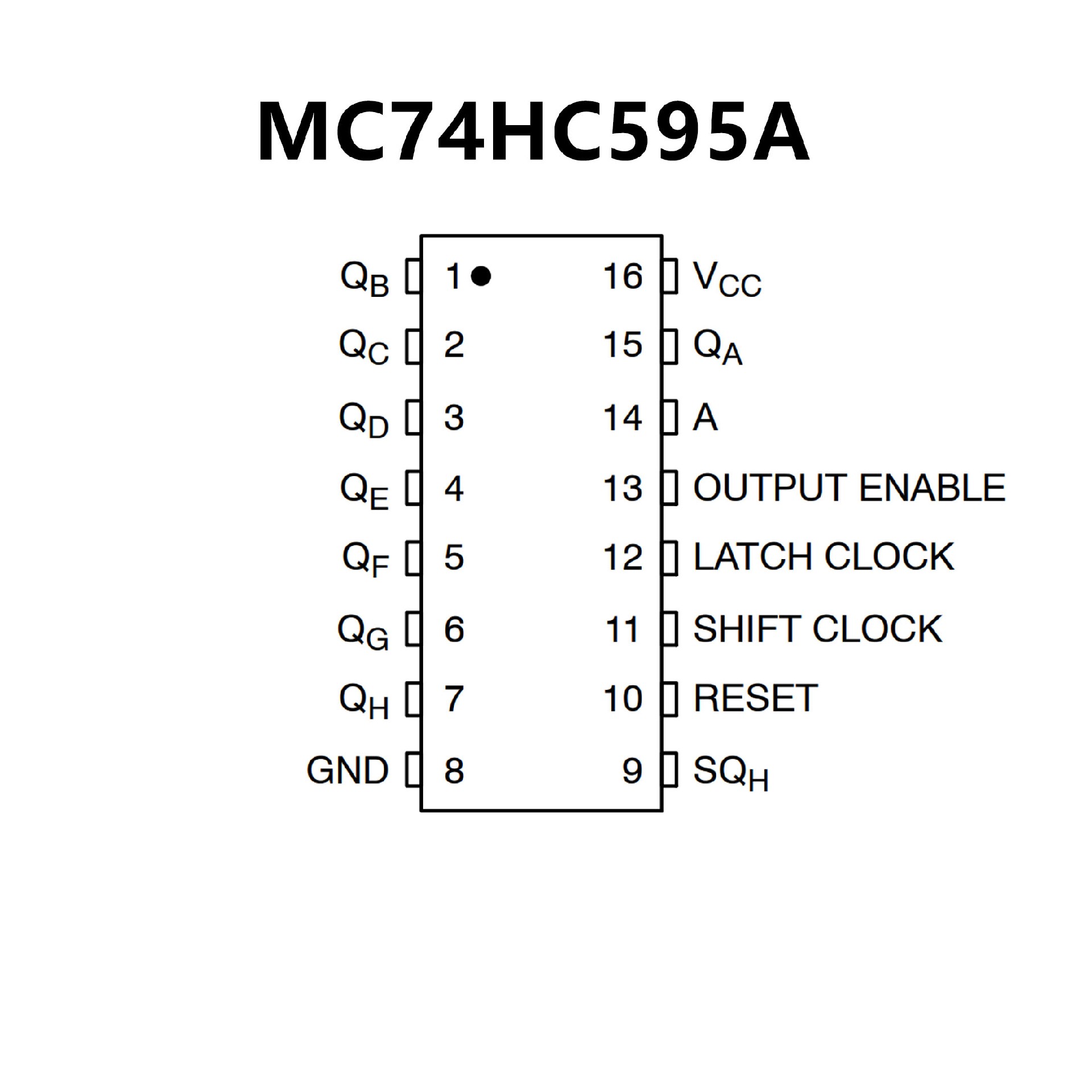

? Improvements over HC595
Improved Propagation Delays
50% Lower Quiescent Power
Improved Input Noise and Latchup Immunity
? NLV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements;
AEC?Q100 Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen
Free and are RoHS Compliant
