Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14GTR Replace HD74HC14FP-EL-E.
74AHC14
74AHC14.pdf
74AHC14.pdfFEATURES
? Balanced Propagation Delays
? All Inputs Have Schmitt Trigger Actions
? Inputs Accept Voltages Higher Than VCC
? Input Level: CMOS Level
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

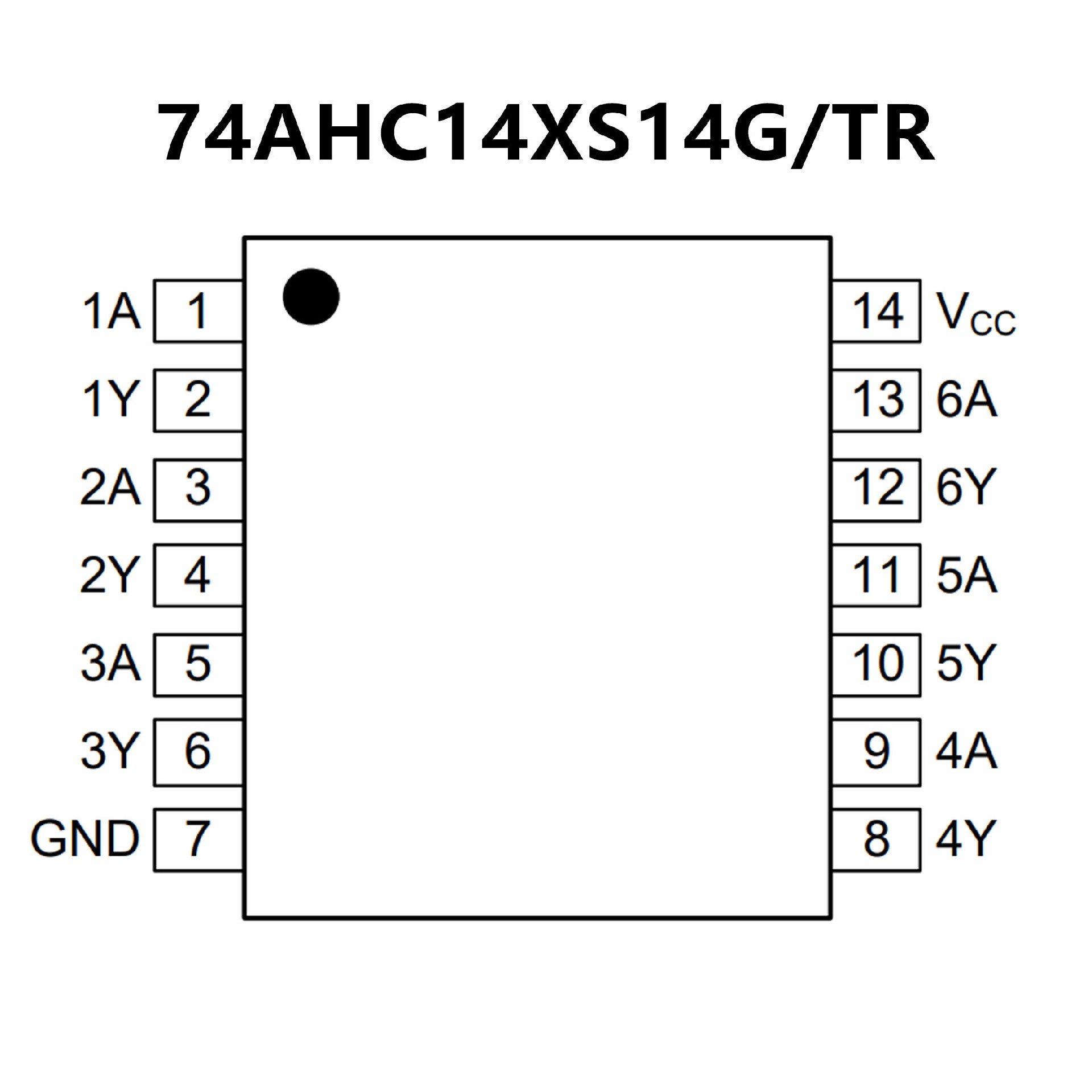

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? High Speed Operation: tpd = 10.5 ns typ (CL = 50 pF)
? High Output Current: Fanout of 10 LSTTL Loads
? Wide Operating Voltage: VCC = 2 to 6 V
? Low Input Current: 1 μA max
? Low Quiescent Supply Current:
ICC (static) = 1 μA max (Ta = 25°C)
? Ordering Information

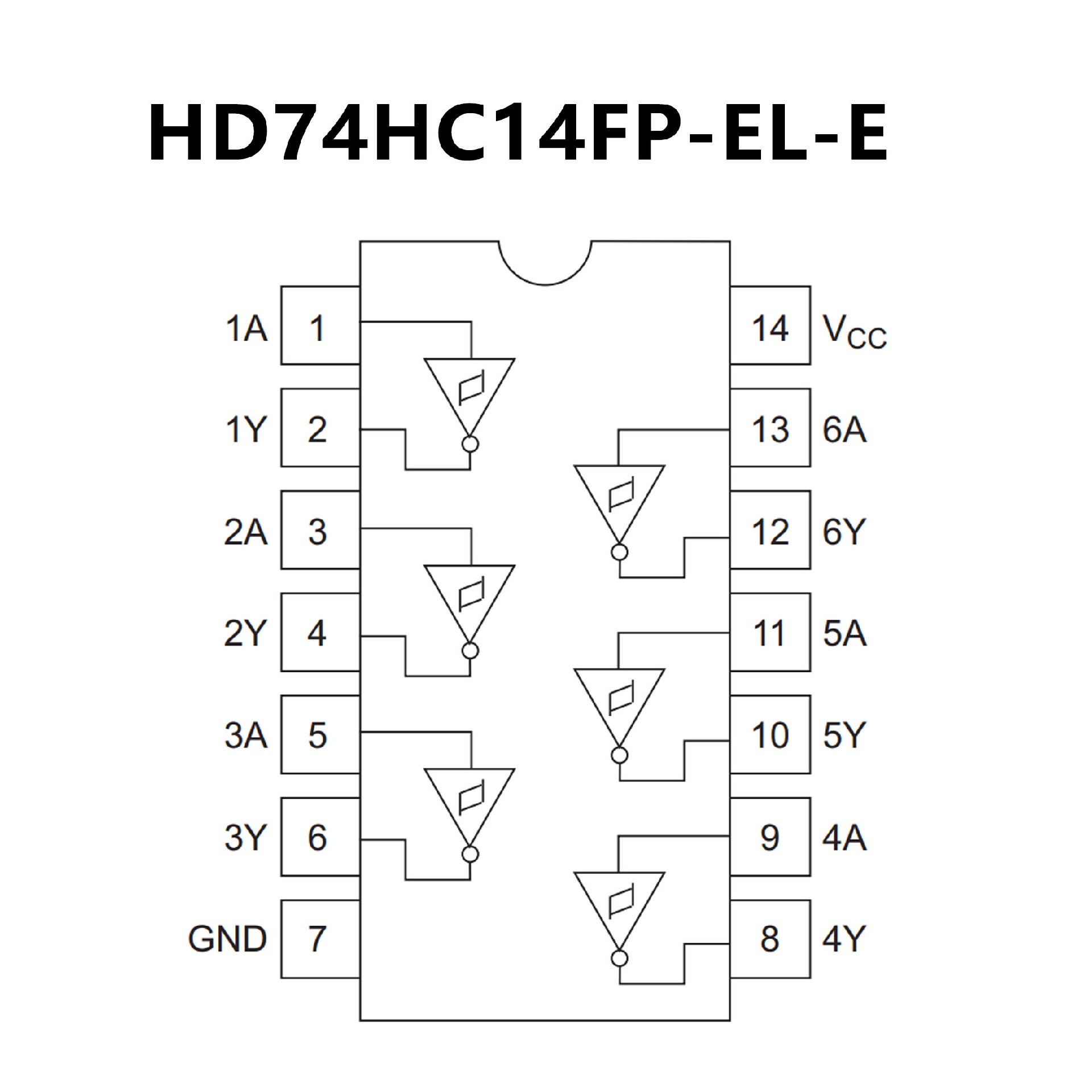

PIN CONFIGUTION
