Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14G Replace SN74LV14ADR.
74AHC14XS14G
74AHC14XS14G.pdf
74AHC14XS14G.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher
than the SupplyVoltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

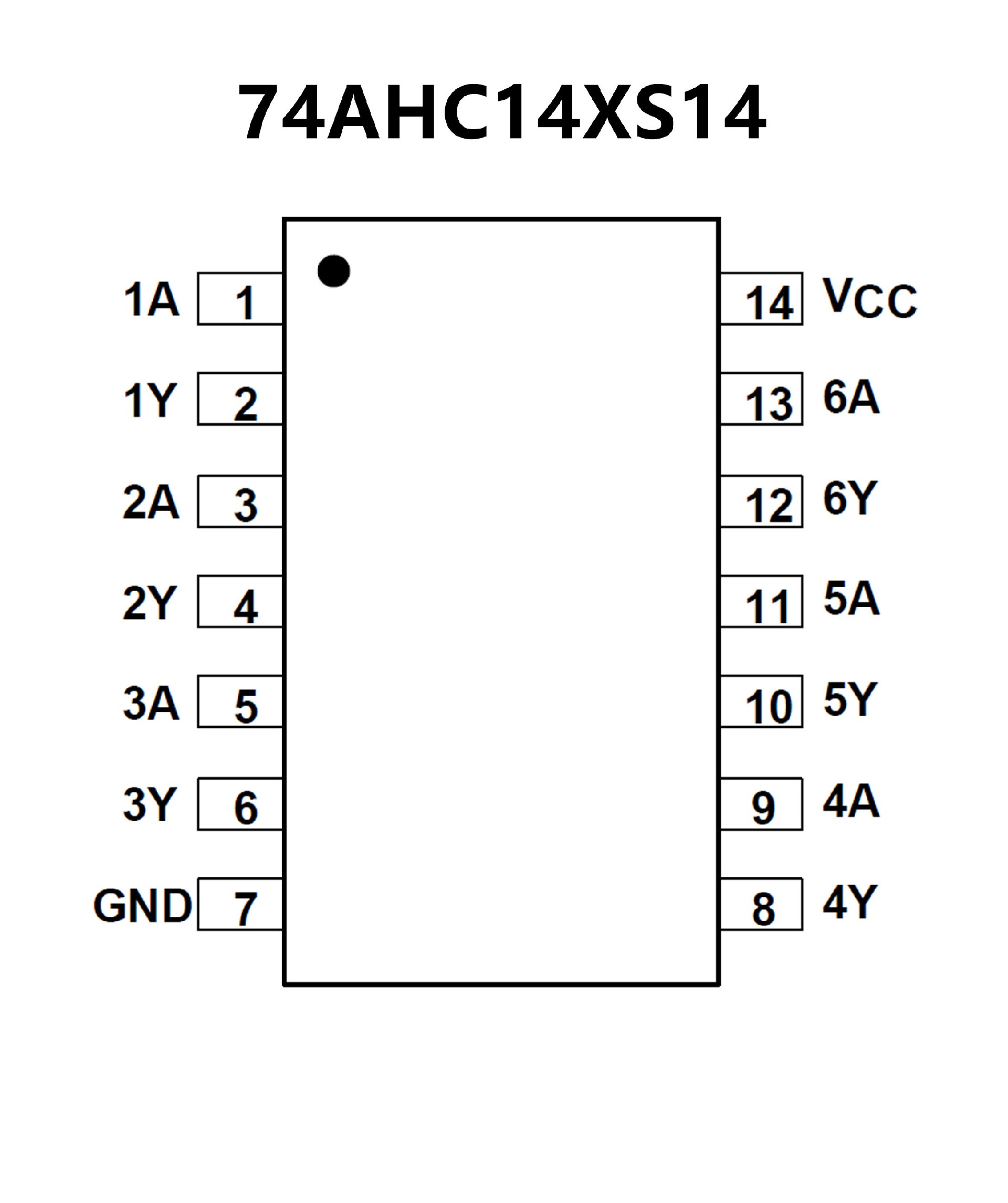

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 2-V to 5.5-V VCC Operation
? Max tpd of 10 ns at 5 V
? Typical VOLP (Output Ground Bounce)
< 0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot)
>2.3 V at VCC = 3.3 V, TA = 25°C
? Support Mixed-Mode Voltage Operation on
All Ports
? Ioff Supports Partial-Power-Down Mode Operation
? Latch-Up Performance Exceeds 250 mA
Per JESD 17
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

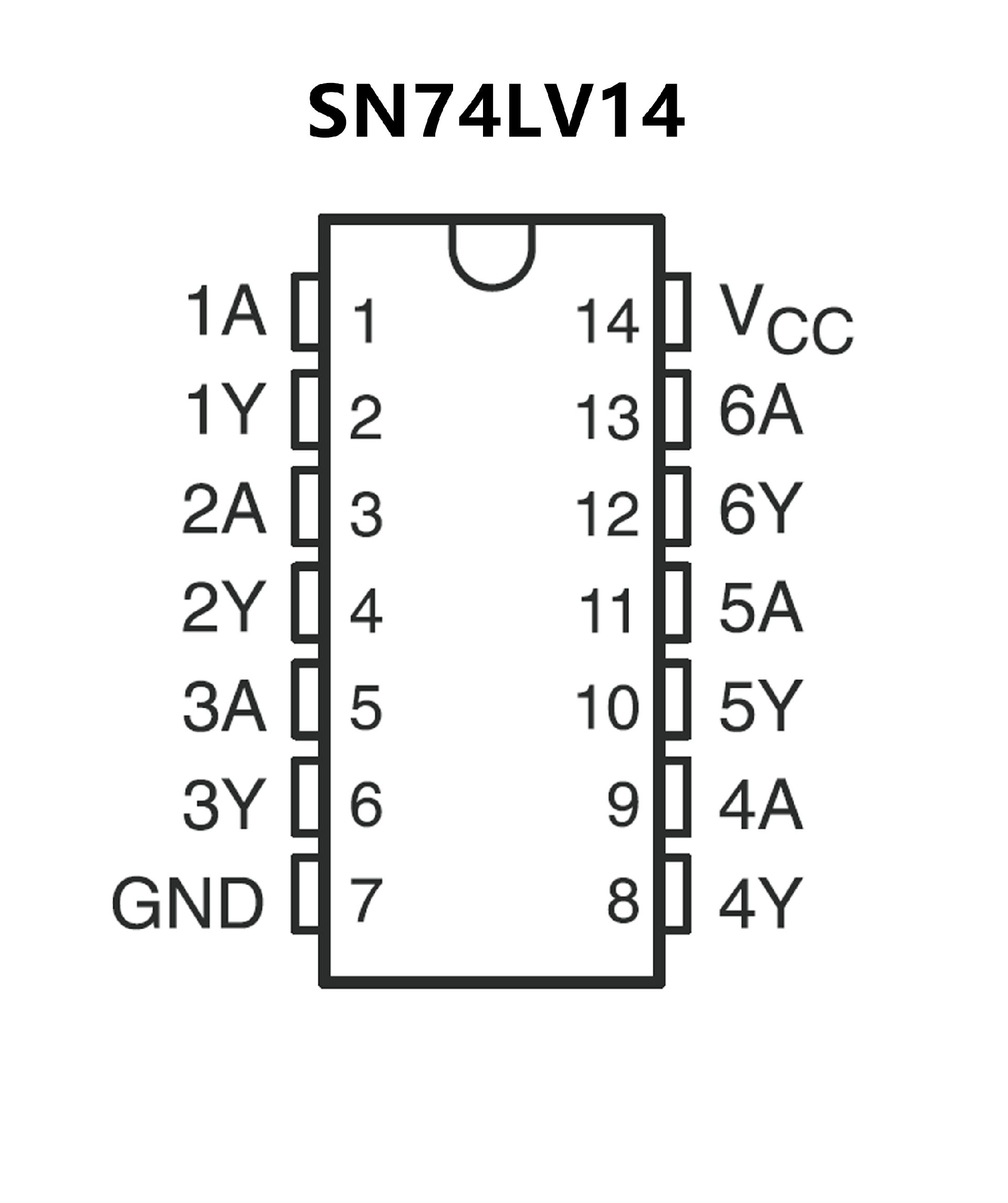

PIN CONFIGUTION
