Hex Inverter with Schmitt Trigger Inputs,74AHC14 Replace SN74HC14PWR.
74AHC14
74AHC14.pdf
74AHC14.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the Supply
Voltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

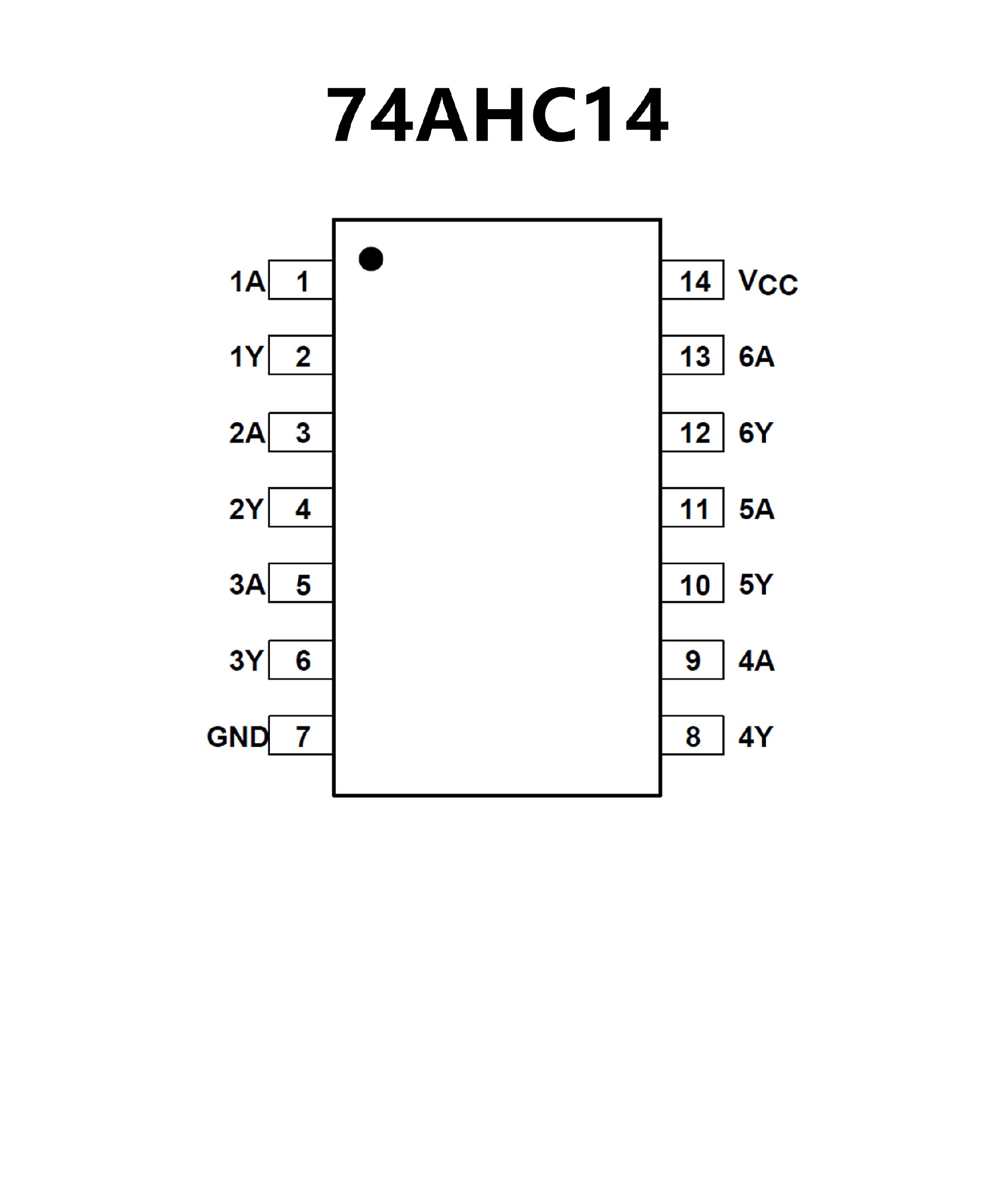

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? Buffered inputs
? Wide operating voltage range: 2 V to 6 V
? Wide operating temperature range: -40°C to +85°C
? Supports fanout up to 10 LSTTL loads
? Significant power reduction compared to LSTTL
logic ICs

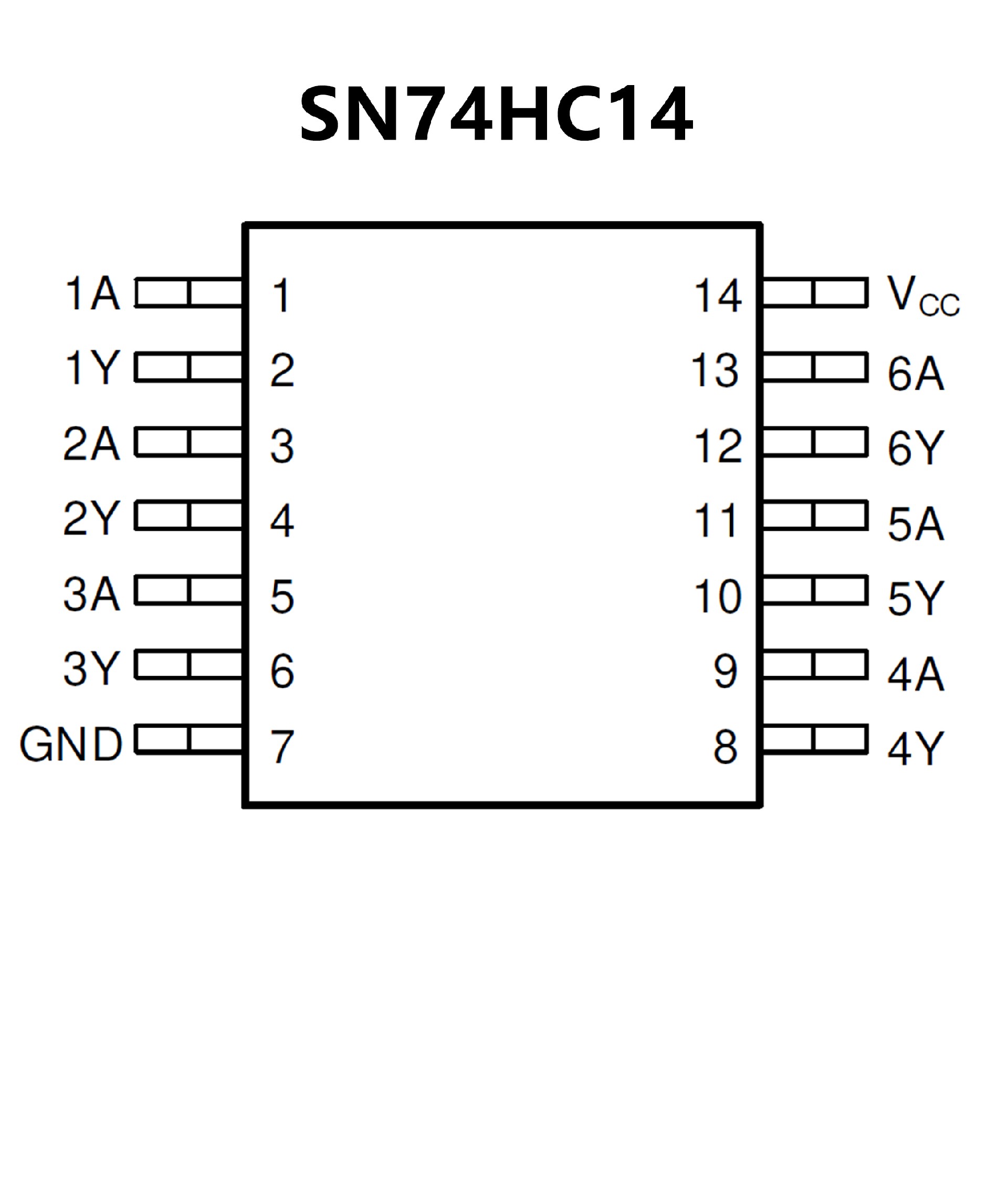

PIN CONFIGUTION
